Description

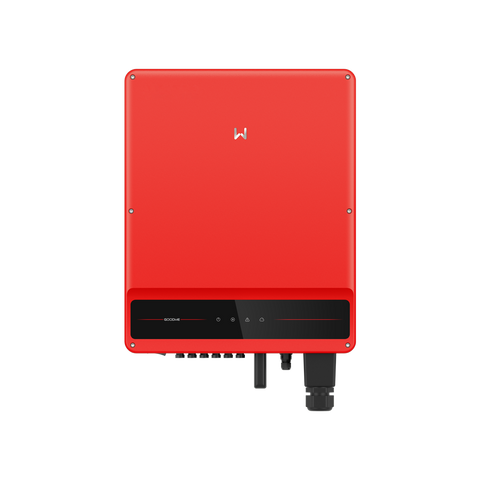

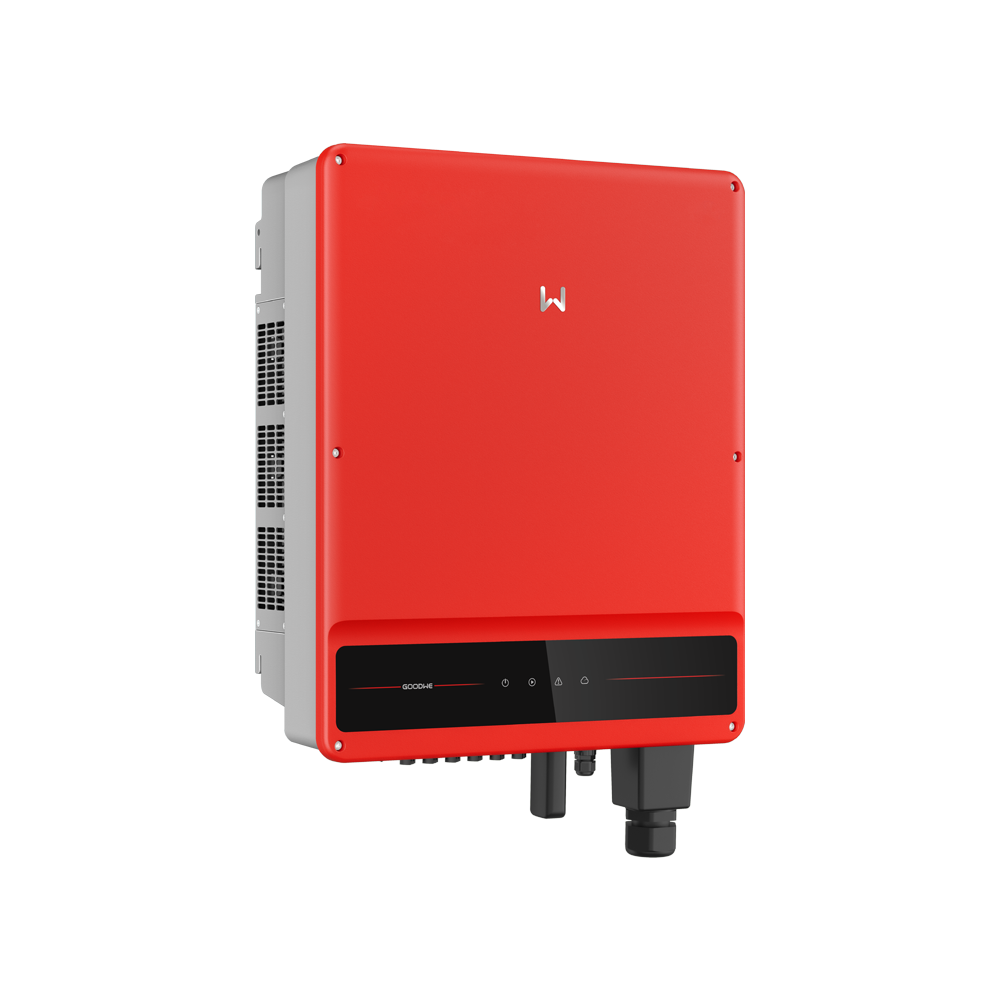

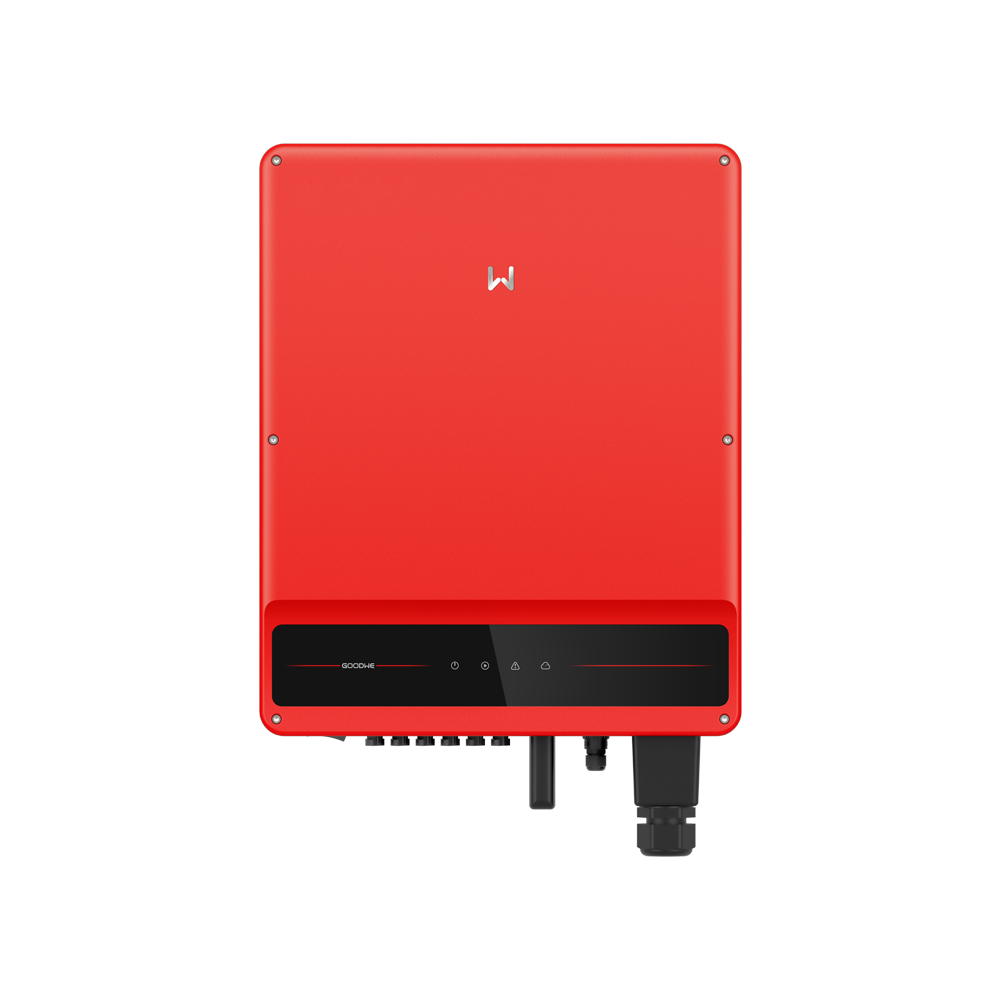

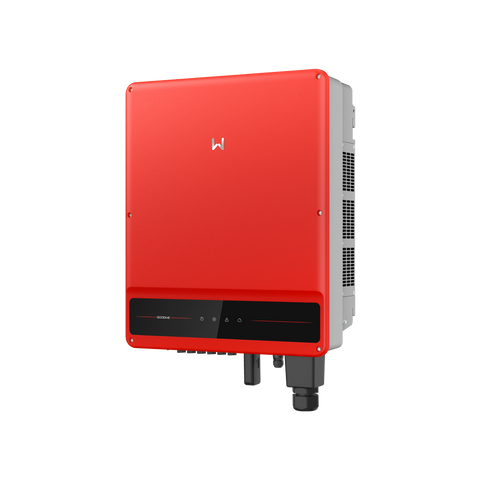

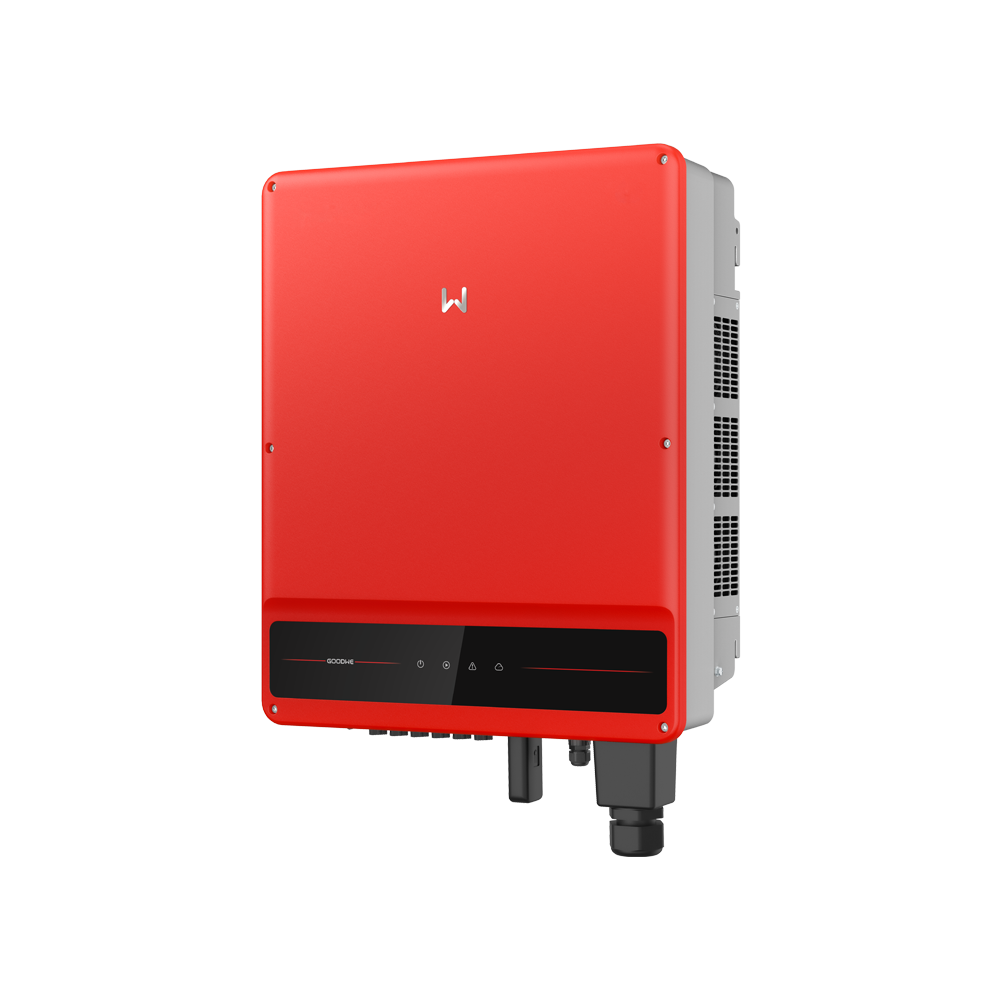

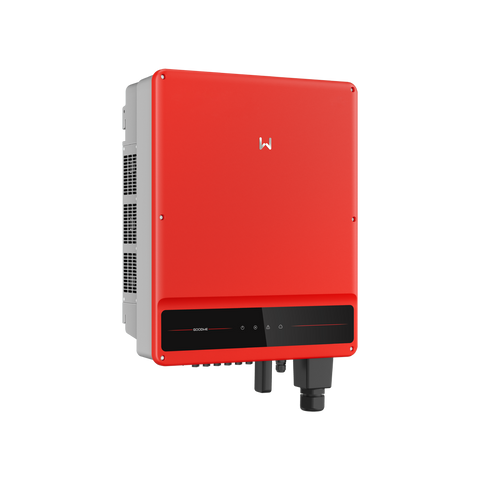

xThe GoodWe GW36K-MT is a high-performance, three-phase, grid-tied inverter from the SMT Series, engineered for commercial rooftop photovoltaic (PV) systems. With a maximum efficiency of 98.8% and support for up to three Maximum Power Point Trackers (MPPTs), it ensures optimal energy harvest even in complex installations. Its compact design and lightweight construction facilitate easy installation, while advanced safety features like optional Arc Fault Circuit Interrupter (AFCI) and Type II surge protection enhance system reliability. The inverter's compatibility with high-power PV modules and its ability to operate at full load up to 45°C make it a robust solution for demanding environments.
Key Features
- High Efficiency: Achieves up to 98.8% efficiency, maximizing energy conversion
- Multiple MPPTs: Equipped with 3 MPPTs for flexible system design and improved energy harvest
- Wide MPPT Voltage Range: Operates efficiently within a 200–950 V range
- Robust Protection: Optional Type II AC/DC surge protection and AFCI for enhanced safety
Specifications
xDesignation
GW36K-MT
Nominal Output Power
36,000 W (33,000 W for Italy)
Max. Input Voltage
1,100 V
MPPT Operating Voltage Range
200 – 950 V
Number of MPP Trackers / Strings per MPPT
3 / 2
Max. Input Current per MPPT
25 A (Short Circuit Current: 31.3 A)
Max. Output Current
53.3 A
Max. Efficiency
98.8% (European Efficiency: 98.5%)
Ingress Protection Rating
IP65
Communication Options
RS485, WiFi or 4G or PLC (Optional), Modbus-RTU (SunSpec Compliant)
