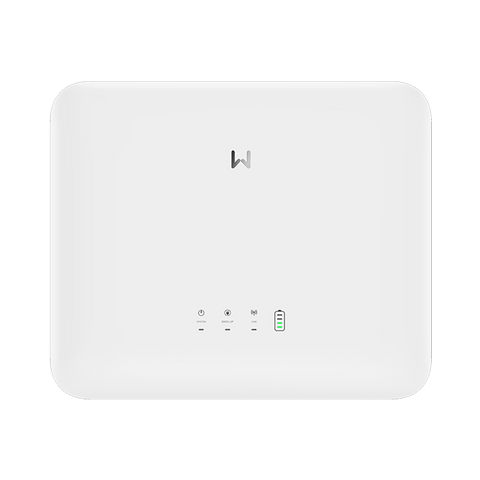

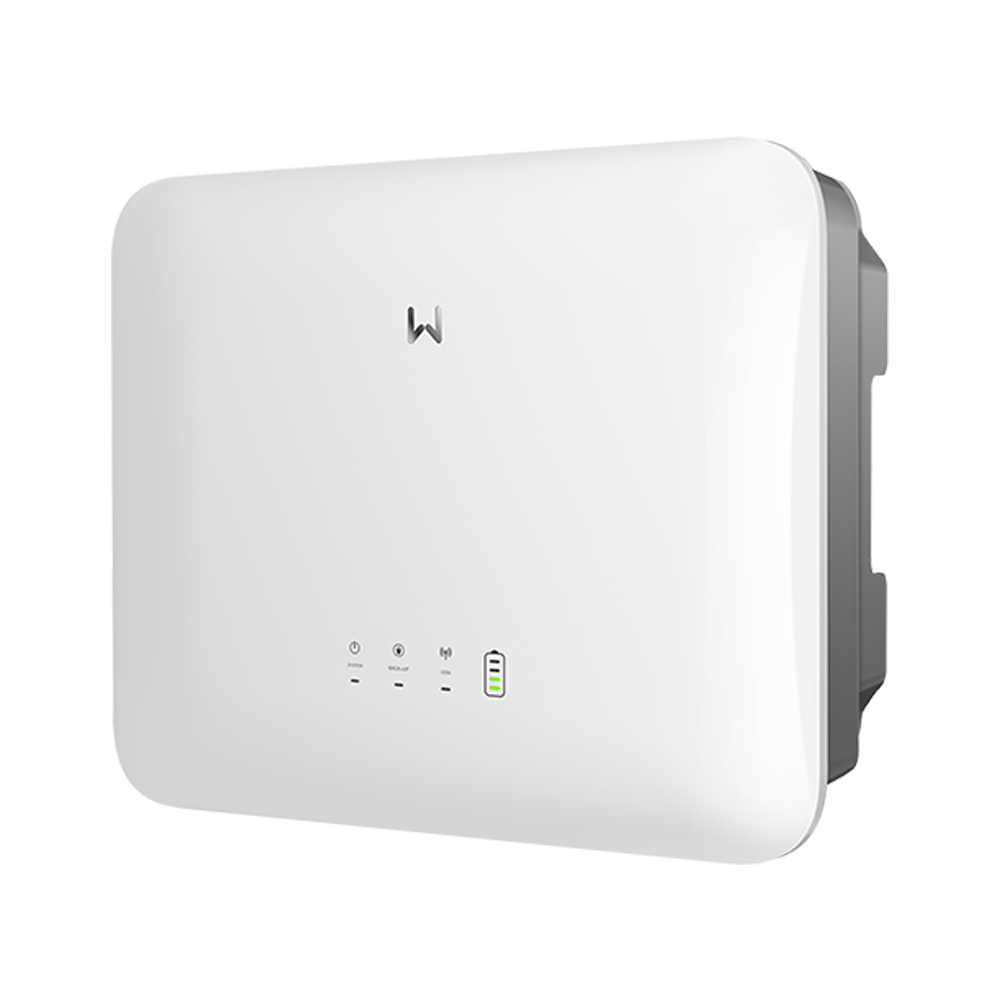

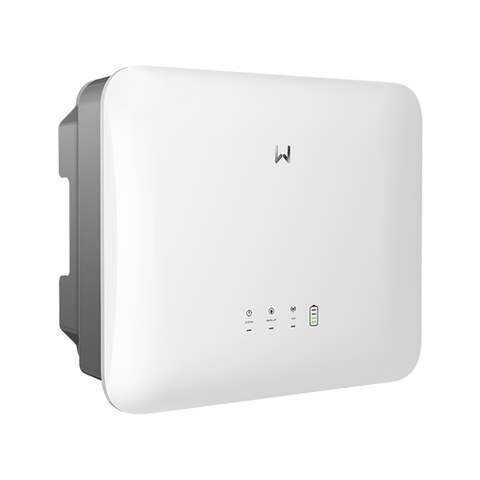

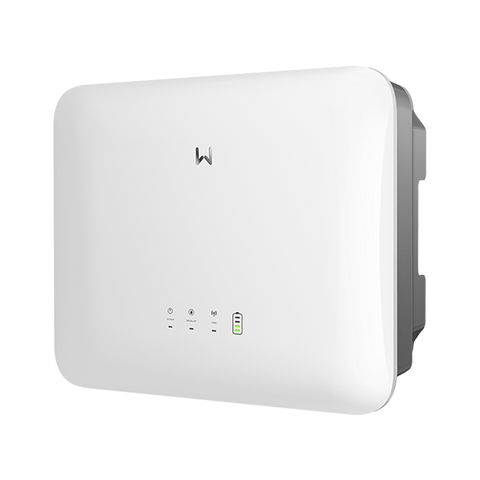

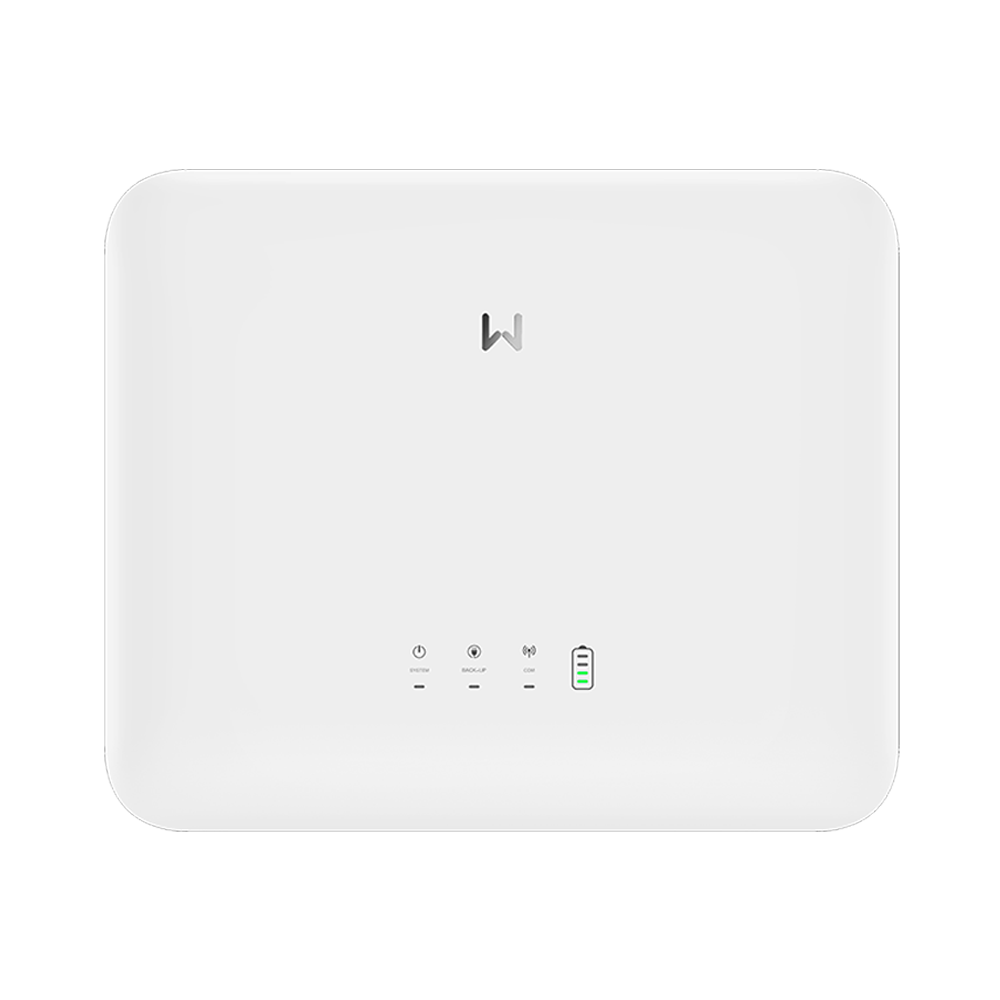

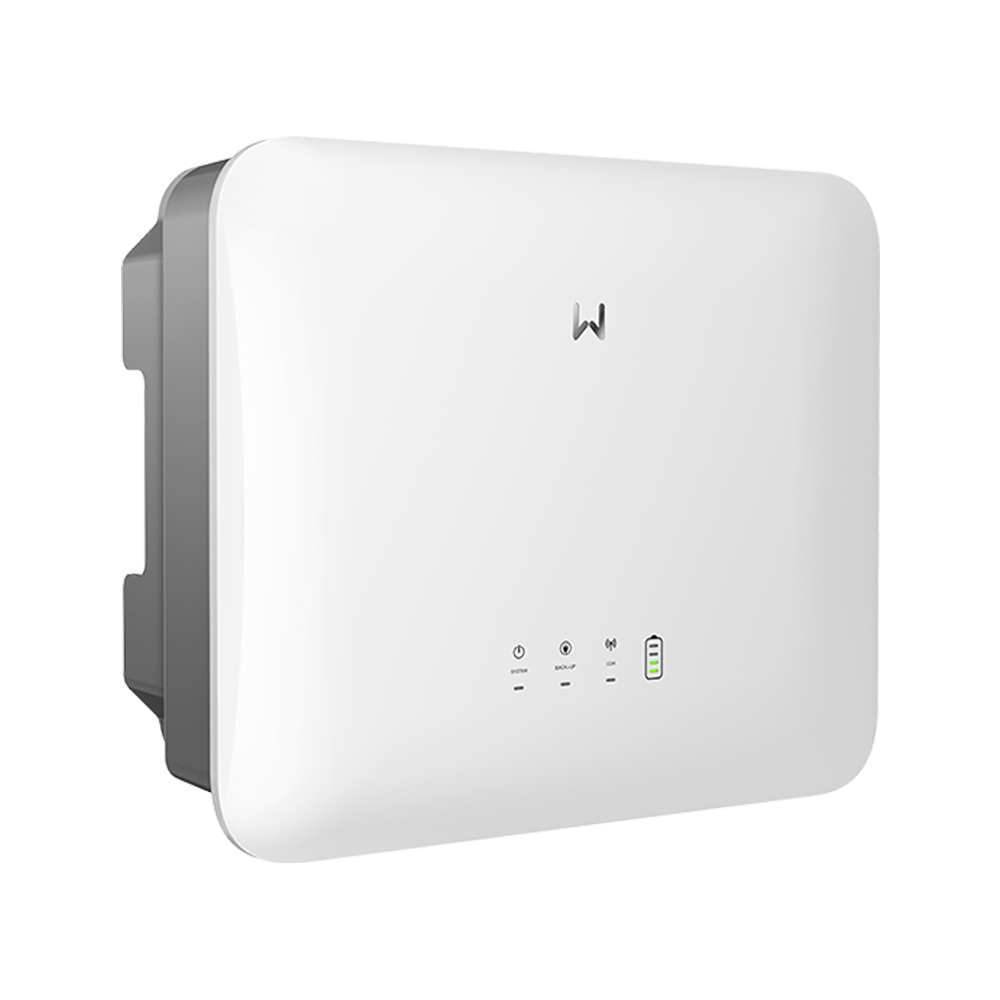

GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW
GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW
GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW
GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW
GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW
GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW

GoodWe ES Gen 2 Hybrid inverter, 1-phase, 2 MPPT, Wifi, 3.6kW

The GoodWe ES G2 3.6kW Hybrid Inverter is a versatile single-phase solution designed for residential solar energy systems.With dual Maximum Power Point Trackers (MPPTs), it efficiently manages energy from solar panels, batteries, and the grid.Its compact design and intelligent energy management capabilities make it ideal for homeowners seeking energy independence...
Vendor: Goodwe
SKU: GW3600-ES-20
Availability: In stock
Product type: Solar PV Inverters
Please hurry! Only 1 left in stock
Description
Description
x

The GoodWe ES G2 3.6kW Hybrid Inverter is a versatile single-phase solution designed for residential solar energy systems.With dual Maximum Power Point Trackers (MPPTs), it efficiently manages energy from solar panels, batteries, and the grid.Its compact design and intelligent energy management capabilities make it ideal for homeowners seeking energy independence and reliability.

Key Features

  • Dual MPPTs: Allows for flexible system design and improved energy harvest
  • High Efficiency: Achieves a maximum efficiency of up to 97.6%
  • Wide MPPT Voltage Range: Operates efficiently within a 125–550 V range
  • Robust Protection: Integrated Type II AC/DC surge protection and advanced safety features
Specifications
Specifications
x
Model
GW3600-ES-20
Nominal Output Power
3,600 W
Max. DC Input Voltage
600 V
MPPT Operating Voltage Range
125–550 V
Start-up Voltage
125 V
Max. Input Current per MPPT
16 A
Number of MPPTs
2
Max. Efficiency
97.6%
Dimensions (W x H x D)
505.9 x 434.9 x 154.8 mm
Weight
20.8 kg
Documents
Documents
x

Datasheet
