Description

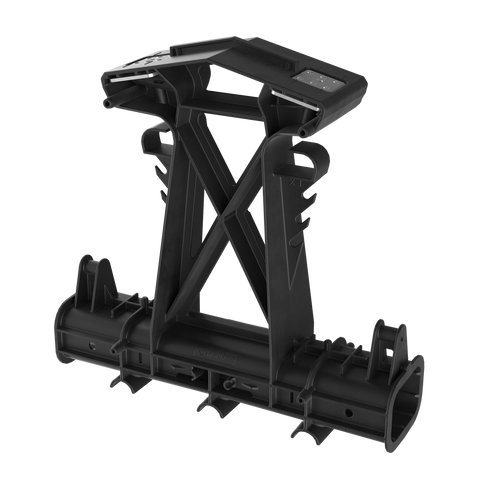

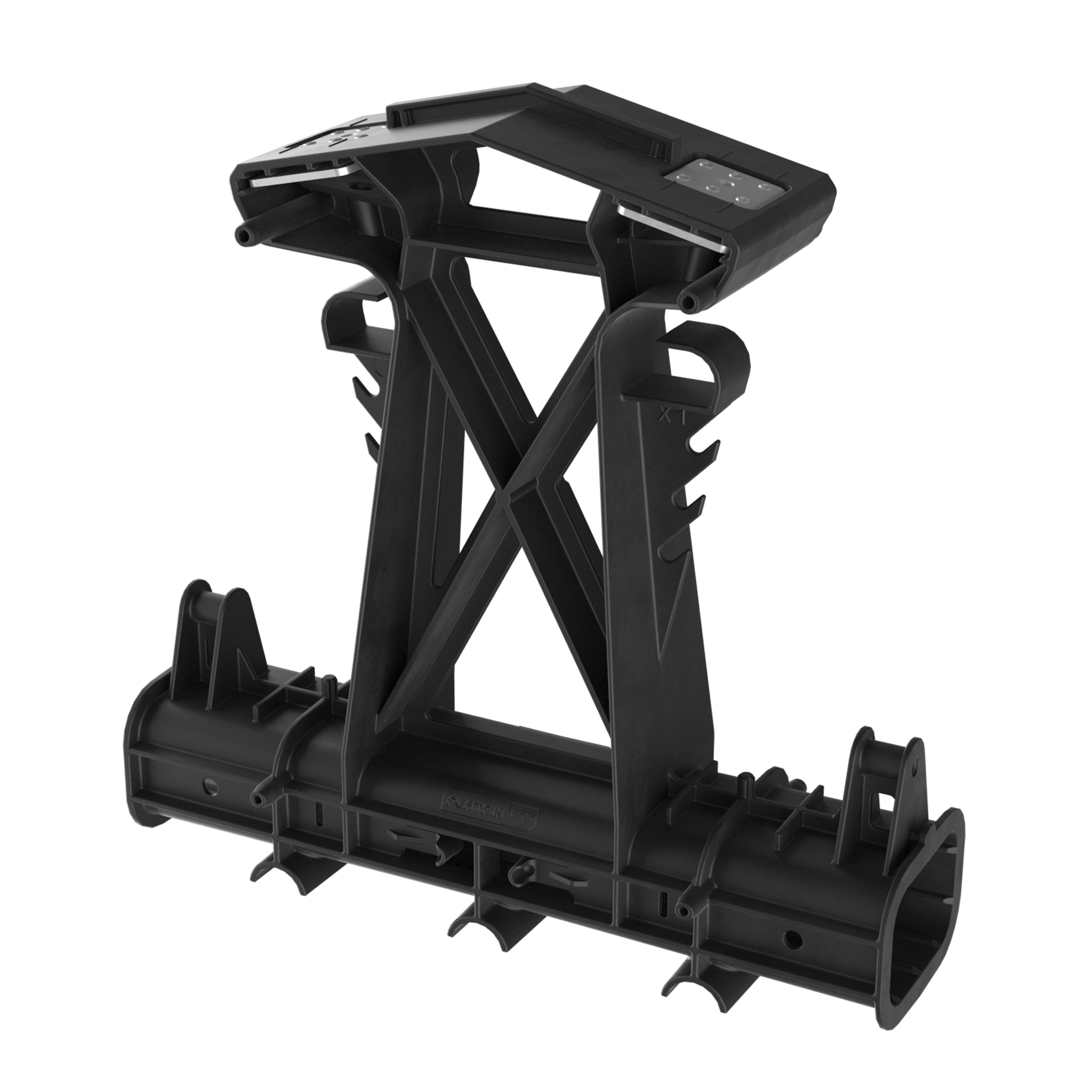

xThe Esdec FlatFix Fusion High Base (Portrait) is an innovative, modular mounting solution engineered for flat roof photovoltaic installations. Designed for elevated portrait configurations, this system enhances airflow and optimises panel performance while ensuring robust structural stability. Its tool-free, click-fit assembly simplifies installation, significantly reducing labour time and costs.
Key Features
- Optimised for portrait module orientation on flat roofs
- High base elevation improves rear ventilation and system efficiency
- Modular and tool-free design for rapid, secure installation
- Integrated cable management for a tidy and compliant layout
Specifications
xProduct Code
1007037
Mounting Orientation
Portrait
Installation Angle
13°
Material Composition
High-grade anodised aluminium and stainless steel
Base Type
High base for improved airflow
Wind Load Resistance
Up to 130 km/h (site-specific configuration)
Snow Load Capacity
Up to 2.4 kN/m²
Roof Compatibility
Bitumen, EPDM, TPO, PVC membranes
Module Width Compatibility
980 mm – 1050 mm
Earthing
Integrated earthing via clamping components
Operating Temperature Range
-40°C to +85°C
