Description

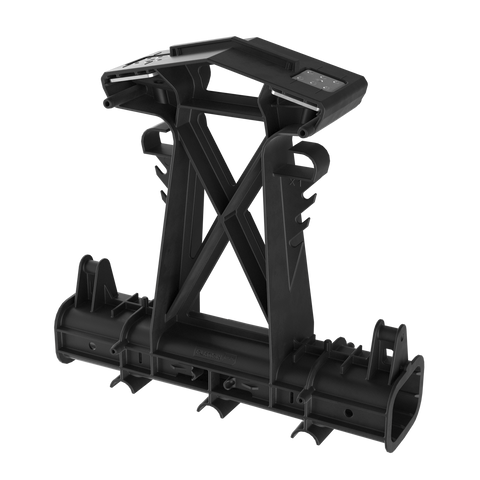

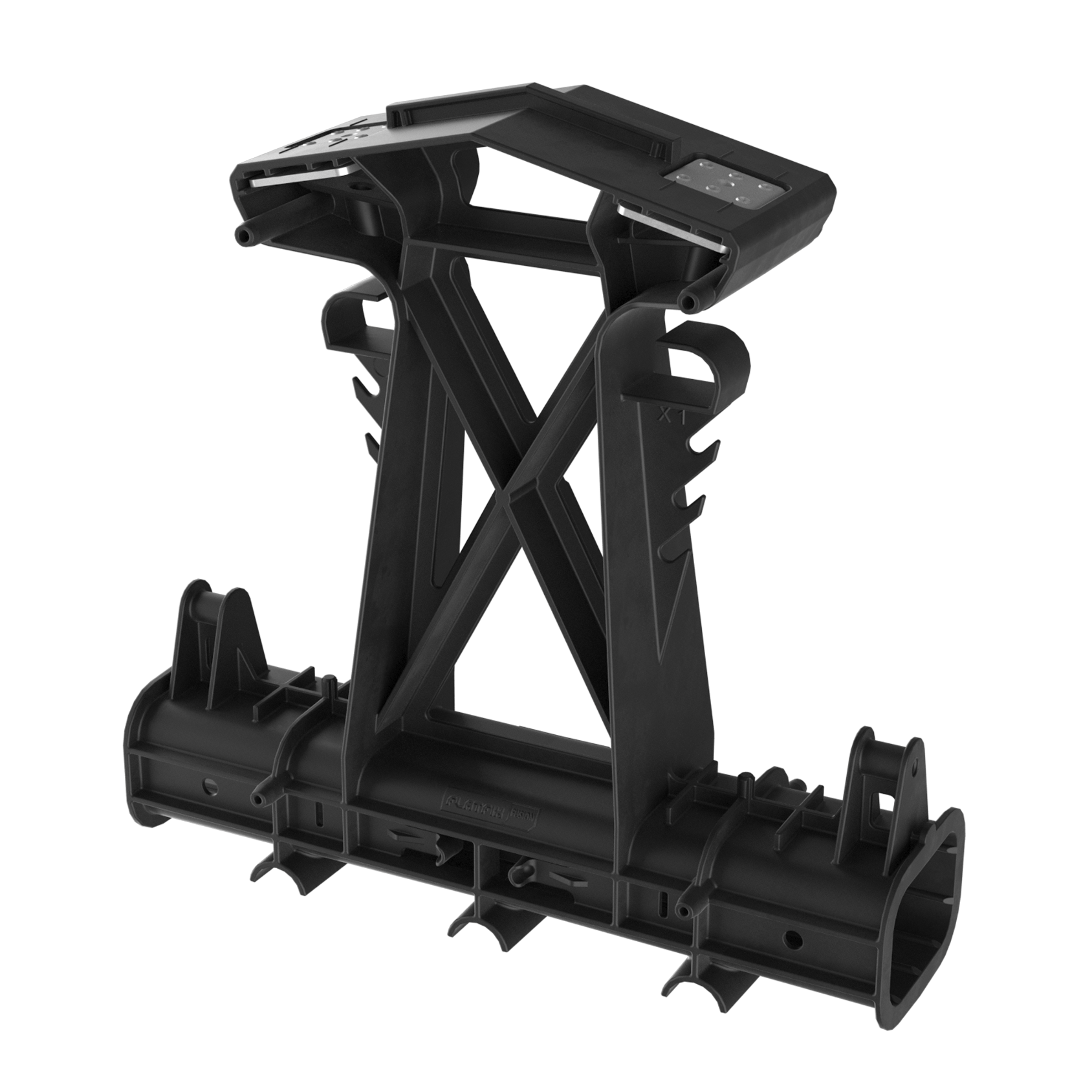

xThe Esdec FlatFix Fusion High Base (1007031) is an advanced component designed for optimised elevation and ventilation of solar modules in flat roof PV installations. Its modular, click-fit design enables quick installation without compromising on system stability. Specifically engineered for increased clearance, it supports enhanced airflow and cabling beneath the array, ensuring long-term system efficiency.
Key Features
- Elevates solar modules for superior rear ventilation
- Compatible with FlatFix Fusion modular mounting system
- Lightweight, corrosion-resistant aluminium construction
- Integrated cable management channels
Specifications
xDesignation
FlatFix Fusion High Base
Product Code
1007031
Material
High-grade aluminium (EN AW-6063 T66)
Surface Treatment
Anodised for corrosion resistance
Installation Angle Range
10–15° (system-dependent)
Base Height
Approx. 120 mm elevation
Wind Load Resistance
Compliant with EN 1991-1-4
Fire Safety Classification
EN 13501-1 compliant
Compatible Roof Types
Flat roofs with bitumen, EPDM, or PVC membranes
Temperature Resistance
-40°C to +85°C
