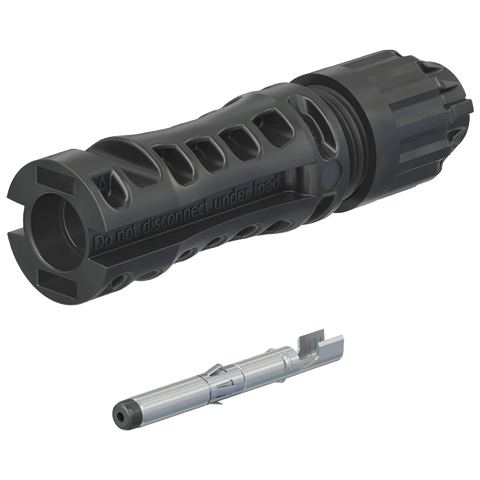

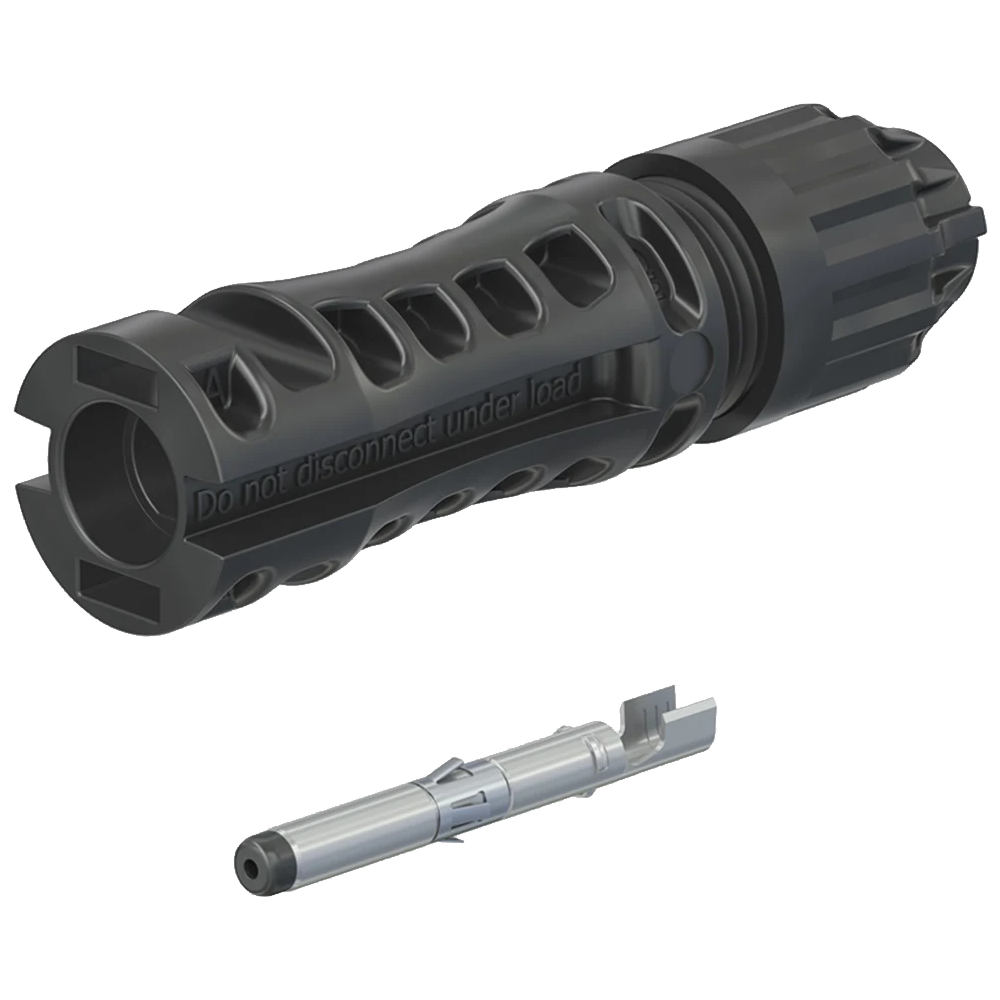

xThe Staubli PV-KST4-EVO 2A/10X Male Cable Coupler MC4-Evo 2A is a high-performance DC connector designed for photovoltaic systems operating up to 1500 V DC. Built with Staubli’s proven MULTILAM technology, this connector ensures safe, low-loss, and long-lasting electrical contact in demanding environments. It supports fast, tool-based assembly in the field and is fully compatible with the MC4-Evo 2 system, making it ideal for utility-scale and commercial PV installations.
Top 4 Key Features
- Rated for high-voltage 1500 V DC photovoltaic applications
- Reliable MULTILAM contact technology for low contact resistance
- Snap-in safety lock for secure, long-term connection
- IP68 protection (mated) ensures waterproof sealing
Specifications
xConnector Type
Male cable coupler (MC4-Evo 2A)
Rated Voltage
1500 V DC (IEC/UL)
Rated Current
Up to 45 A (depending on cable cross-section)
Cable Cross-Section Range
4 mm² to 10 mm²
Contact Resistance
≤ 0.25 mΩ
Degree of Protection
IP68 (mated and locked)
Temperature Range
-40 °C to +85 °C (IEC), up to +105 °C (UL)
Flame Class
UL94-V0 (self-extinguishing plastic)
Insulation Material
PC/PPE (UV, ozone, and ammonia resistant)
Standards Compliance
IEC 62852, UL 6703, TÜV certified
