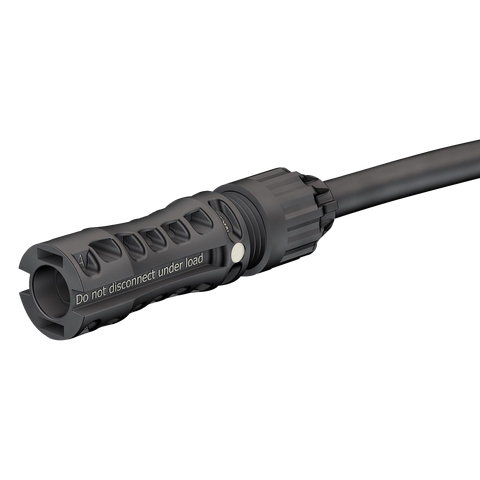

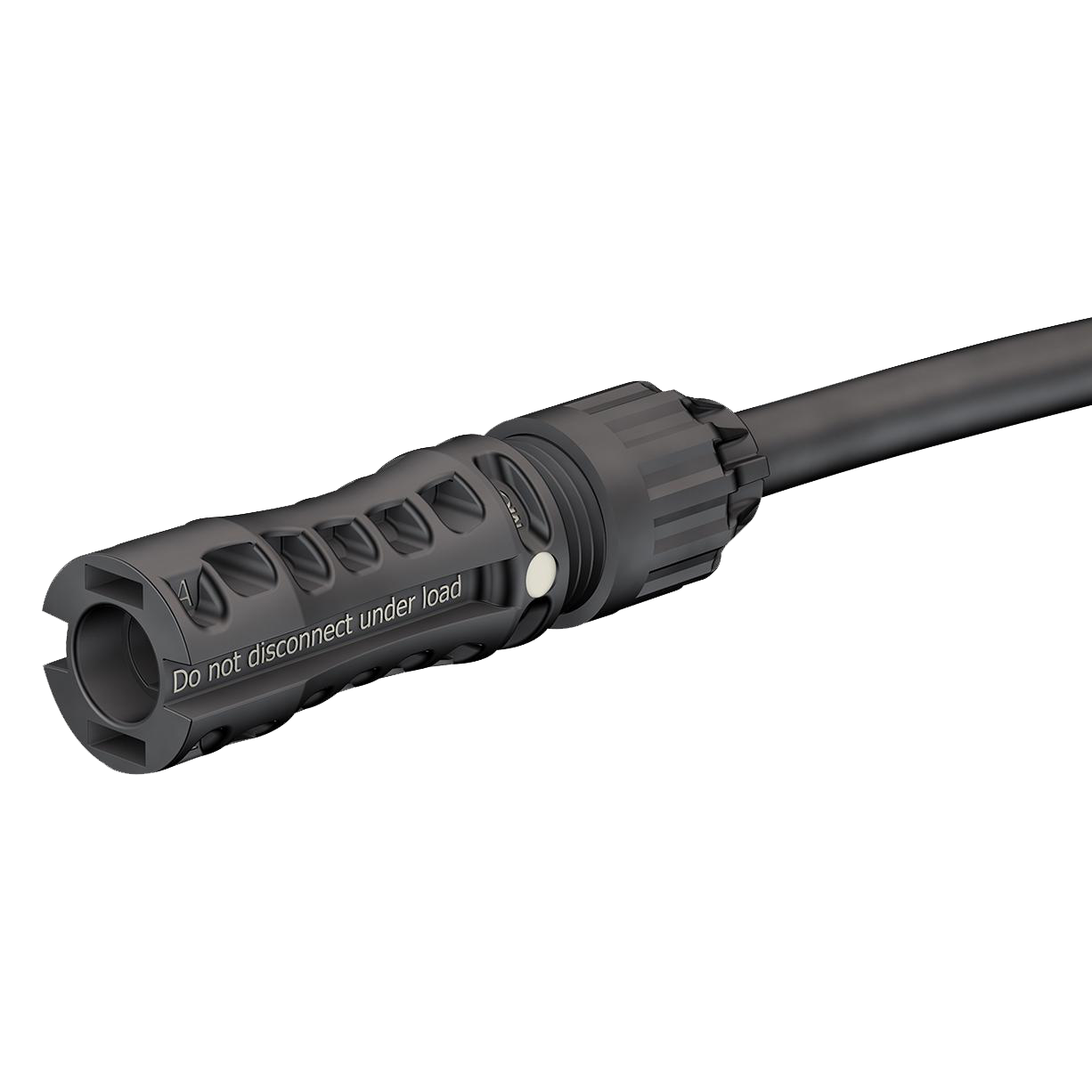

xThe Staubli PV-KST4-EVO 2/6I-UR is a male cable coupler from the MC4-Evo2 series, engineered for reliable and safe photovoltaic connections in modern solar installations. Designed to meet international standards for high-voltage DC systems, this connector ensures optimal conductivity and long-term durability, even in the harshest environments. This product is supplied in a 10 pack, ideal for large-scale or professional PV installations.
Key Features
- Compatible with 4 mm and 6 mm² (12/10 AWG) PV cables
- Certified for 1500 V DC (IEC, UL, JET) systems
- Incorporates Staubli's proven MULTILAM contact technology
- UV and ammonia resistant, ideal for outdoor use
Specifications
xRated Voltage
1500 V DC (IEC, UL, JET)
Rated Current (TÜV, 85°C)
45 A (4 mm²), 53 A (6 mm²)
Temperature Range
-40 °C to +85 °C (operating), up to 115 °C (limit)
Degree of Protection
IP65 / IP68 (mated), IP2X (unmated)
Contact Resistance
≤ 0.2 mΩ
Contact System
MULTILAM
Conductor Cross-Section
4 mm² and 6 mm² (12 AWG / 10 AWG)
Locking System
Locking type (UL-compliant)
Flame Class
UL94-V0
Approvals
IEC 62852, UL 6703, JET, cTÜVus
