Description

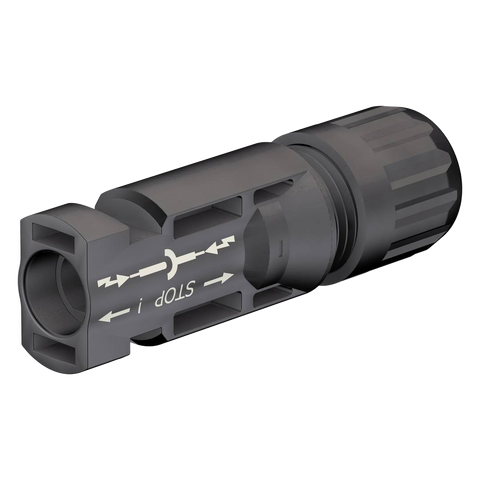

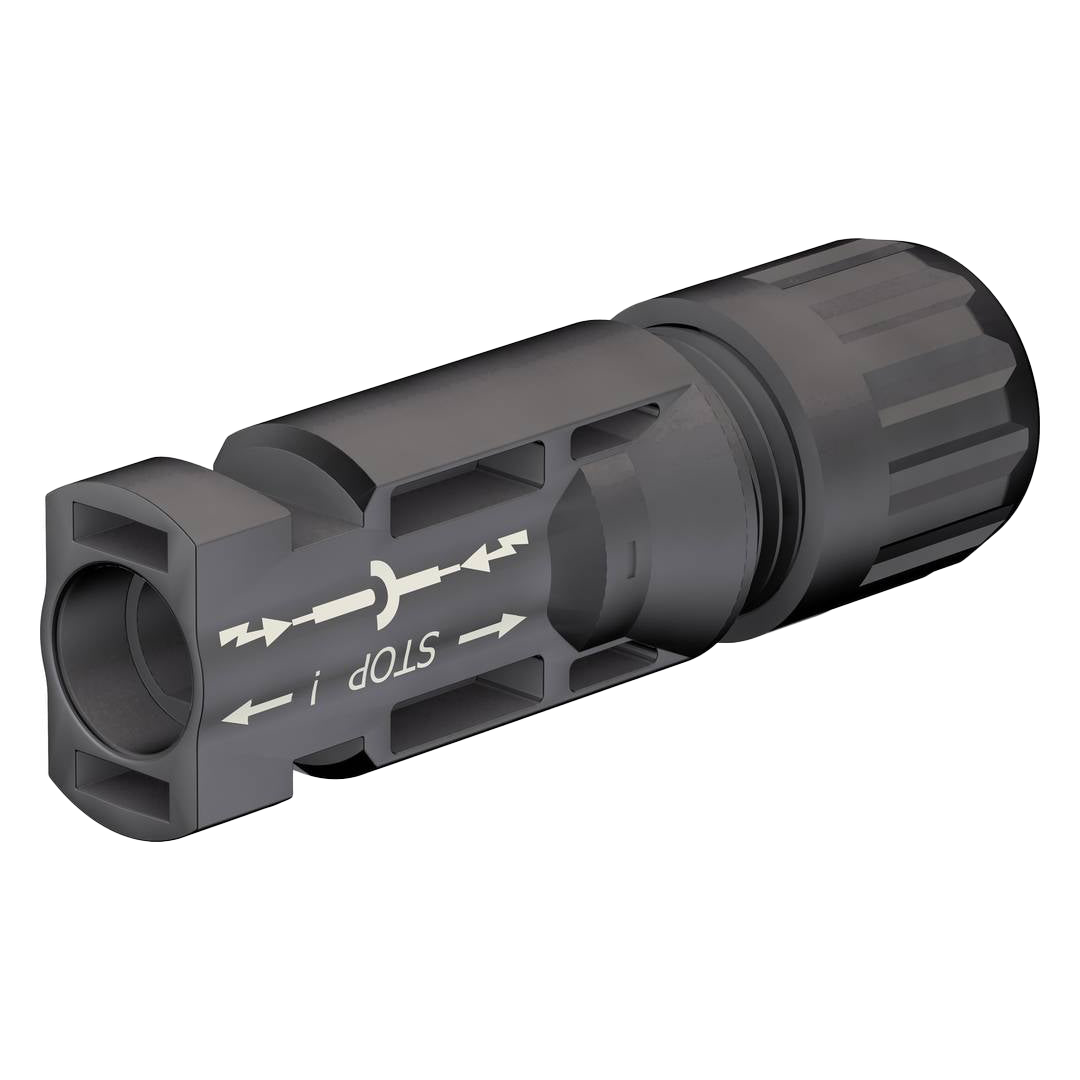

xThe Stäubli PV-KST4/6II-UR Cable Coupler (Male, MC4, 4–6 mm², 100 Pack) is a high-performance photovoltaic connector designed for reliable, low-loss DC connections in solar installations. Ideal for utility-scale, commercial, and industrial PV systems, this male cable coupler features robust materials, advanced MULTILAM contact technology, and industry-standard MC4 compatibility for safe, fast, and secure field assembly.
Key Features
- MC4-compatible male cable coupler
- Designed for 4 mm² to 6 mm² PV cables
- Fast and secure locking mechanism
- Low contact resistance with MULTILAM technology
- Long-term outdoor durability
- IP68-rated waterproof protection (mated)
- High voltage and current rating
- Field-installable with no special tools required
- UV and ammonia resistant
- Compliant with IEC and UL standards
Specifications
xComes in packs of 100
Connector Type
Male cable coupler (MC4-compatible)
Cable Cross-Section
4 – 6 mm²
Rated Voltage
1,500 V DC (IEC) / 1,000 V DC (UL)
Rated Current
Up to 45 A (depending on cable size)
Contact Resistance
≤ 0.5 mΩ
Temperature Range
−40°C to +85°C (IEC) / up to +115°C (UL)
Ingress Protection
IP68 (when mated)
Insulation Material
PPO (Polyphenylene oxide)
Contact Material
Tinned copper with MULTILAM technology
Standards Compliance
IEC 62852 / UL 6703
