Description

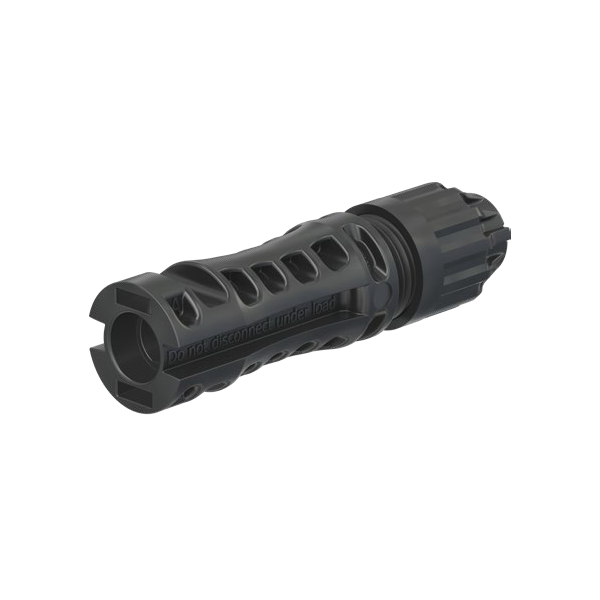

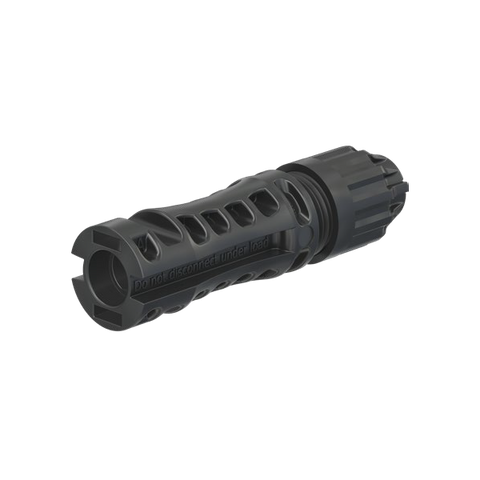

xThe Staubli PV-KBT4-EVO 2A/6I MC4-Evo 2A Male Cable Coupler (10 pack) is a premium photovoltaic connector solution designed for safe, fast, and reliable DC cable connections in solar installations. Engineered to meet the latest international standards, these male couplers ensure long-term durability and low contact resistance in harsh environmental conditions. They are compatible with MC4-Evo 2 system components, ideal for high-current applications and field-assembled cables.
Key Features
- TÜV and UL certified for global compatibility
- Rated for high current handling up to 45 A
- IP68 protection (mated) for outdoor durability
- Reliable MULTILAM contact technology
Specifications
xConnector Type
Male cable coupler (MC4-Evo 2A)
Rated Voltage
1500 V DC (IEC/UL)
Rated Current
Up to 45 A (depending on cable cross-section)
Cable Cross-Section Range
4 mm² to 6 mm²
Contact Resistance
≤ 0.25 mΩ
Degree of Protection
IP68 (when mated and locked)
Temperature Range
-40 °C to +85 °C (IEC), up to +105 °C (UL)
Flame Class
UL94-V0 (flame retardant plastic)
Insulation Material
PC/PPE (UV & weather resistant)
Standards Compliance
IEC 62852, UL 6703, TÜV certified
