Description

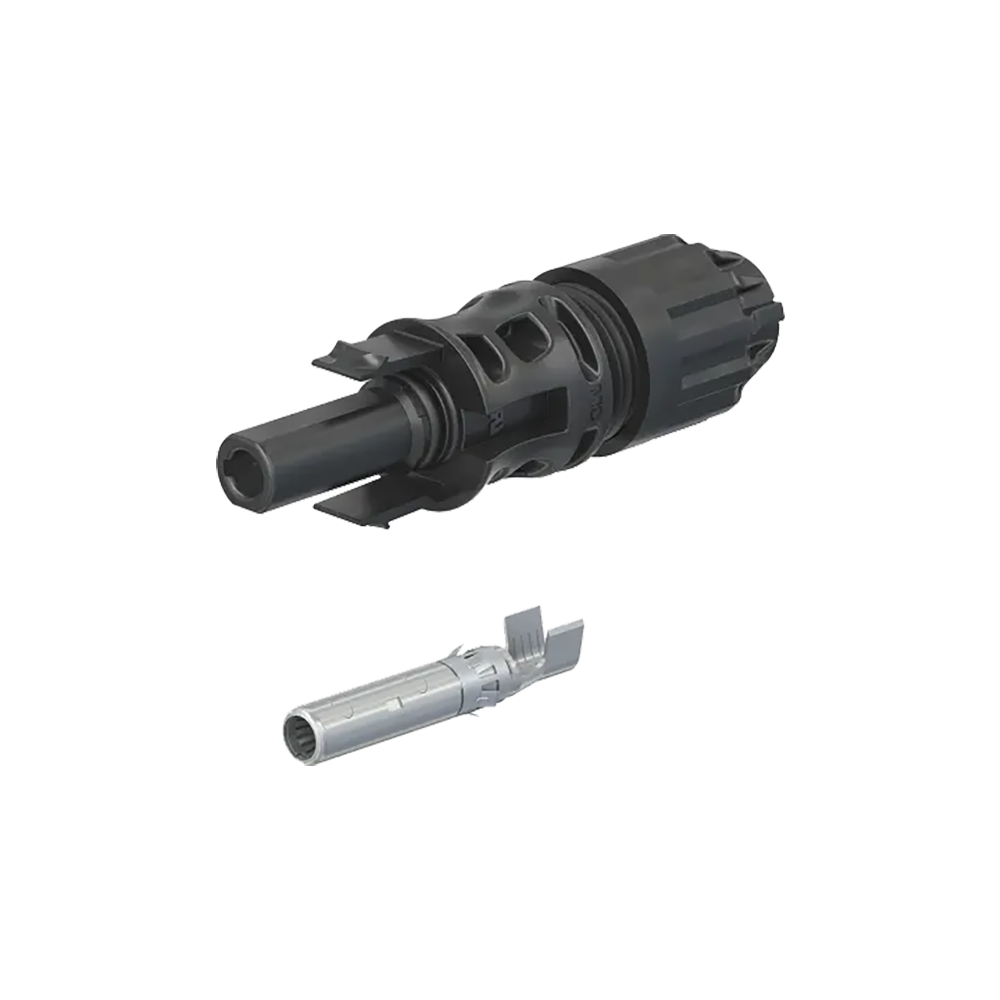

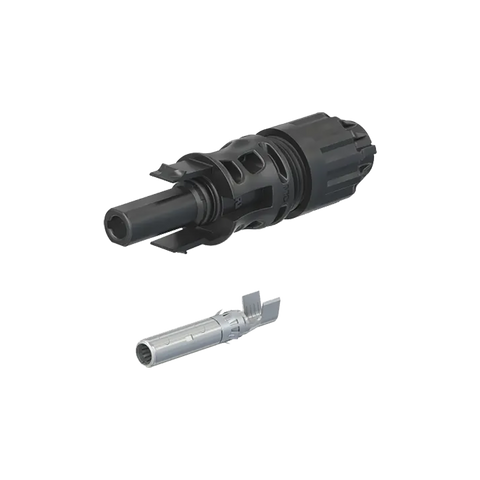

xThe Staubli PV-KBT4-EVO 2A/6I is a high-performance MC4-Evo 2A female cable coupler designed for fast, secure, and reliable photovoltaic connections. Supplied in a convenient 10-pack, these couplers are engineered for use in harsh outdoor environments and support conductor cross-sections up to 6 mm² (10–12 AWG). Leveraging Staubli’s proven MULTILAM contact technology, they deliver minimal contact resistance and high long-term stability, ensuring maximum energy efficiency and safety in utility-scale, commercial, and residential solar installations.
Key Features
- Snap-in locking system compliant with NEC 2020 (tool required for disconnection)
- MULTILAM contact technology for long-term low contact resistance
- Rated for high current and voltage applications
- Suitable for conductor cross-sections up to 6 mm²
- High resistance to UV, ammonia, and salt mist
- IP68 rated (when mated) for waterproof protection
- TÜV and UL certified
Specifications
xProduct Type
MC4-Evo 2A female cable coupler
Conductor Cross-Section Range
1.5 – 6 mm² (AWG 14–10)
Rated Voltage
1500 V DC (IEC/UL)
Rated Current
Up to 39 A (depending on conductor size)
Contact Technology
MULTILAM for low contact resistance
Ingress Protection
IP68 (mated), IP2X (unmated)
Locking System
Snap-in with tool-based unlocking (NEC 2020 compliant)
Temperature Range
−40 °C to +85 °C (IEC)
Material
UV-resistant, halogen-free thermoplastic
Standards & Certifications
IEC 62852, UL 6703, TÜV Rheinland
