Description

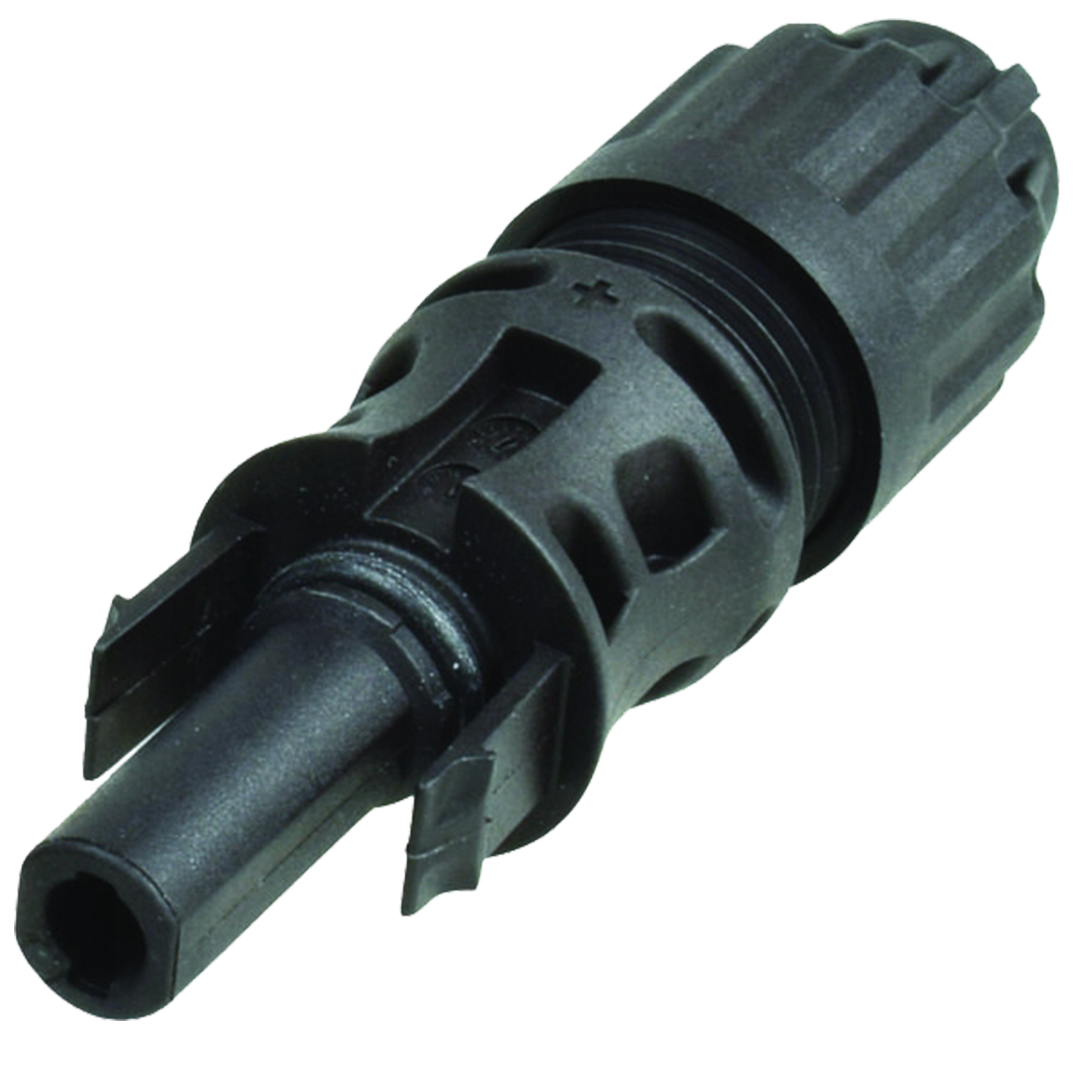

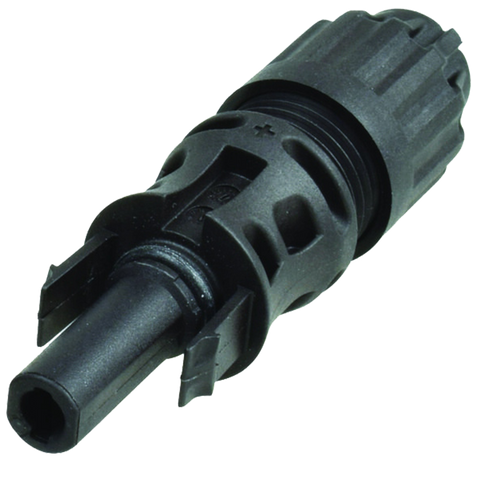

xThe Staubli PV-KBT4-EVO 2A/10X Female Cable Coupler (MC4-Evo 2A) is an advanced solar connector engineered for high-performance and long-term durability in photovoltaic applications up to 1500 V DC. Part of Staubli’s MC4-Evo 2 series, this coupler is compatible with a broad range of PV cable sizes and offers reliable low-resistance connections thanks to Staubli’s MULTILAM contact technology. It is ideal for large-scale solar installations where safety, weather resistance, and compliance with global standards are critical.
Key Features
- Suitable for up to 1500 V DC systems (IEC/UL)
- Low contact resistance due to MULTILAM technology
- Snap-in locking mechanism with tool-based unlocking
- Secure and weatherproof connection (IP68 when mated)
Specifications
xConnector Type
Female cable coupler (MC4-Evo 2A)
Rated Voltage
1500 V DC (IEC/UL)
Rated Current
Up to 45 A (depending on cable cross-section)
Cable Cross-Section Range
4 mm² to 10 mm²
Contact Resistance
≤ 0.25 mΩ
Degree of Protection
IP68 (mated and locked)
Temperature Range
-40 °C to +85 °C (IEC), up to +105 °C (UL)
Flame Class
UL94-V0 (self-extinguishing plastic)
Insulation Material
PC/PPE (UV, ozone, and ammonia resistant)
Standards Compliance
IEC 62852, UL 6703, TÜV certified
