Description

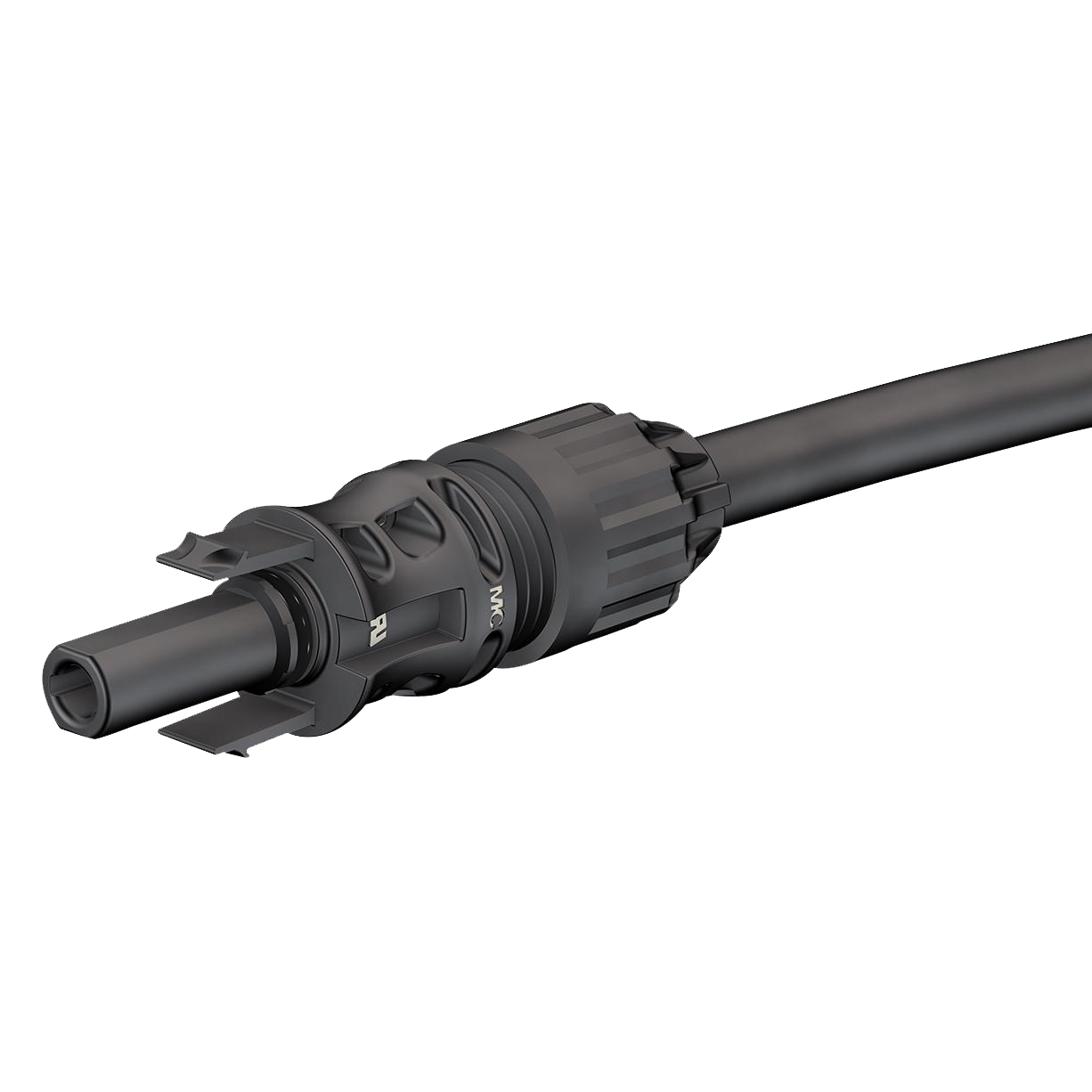

xThe Staubli PV-KBT4-EVO 2/6I-UR is a high-performance female cable coupler from the MC4-Evo 2 connector family, engineered for demanding photovoltaic applications. Designed for maximum reliability and safety, this product is ideal for field installations requiring durable, weather-resistant, and low-loss DC connections. The coupler supports large conductor cross-sections and is suitable for use in modern high-efficiency PV systems.
Key Features
- MC4-Evo 2 series female coupler
- Designed for high current and voltage loads
- Touch-proof and IP68 rated when mated
- Tool-unlockable design compliant with NEC 2020
Specifications
xProduct Type
Female cable coupler
Connector Series
MC4-Evo 2
Cable Cross-Section
6 mm²
Rated Current (UL)
Up to 35 A
Rated Voltage (UL)
1500 V DC
Contact Resistance
≤ 0.25 mΩ
Degree of Protection
IP68 (when mated)
Operating Temperature Range
−40 °C to +85 °C
Connection Technology
Crimp (barrel type)
Material (Contact / Housing)
Copper alloy, tin-plated / PPO
