Description

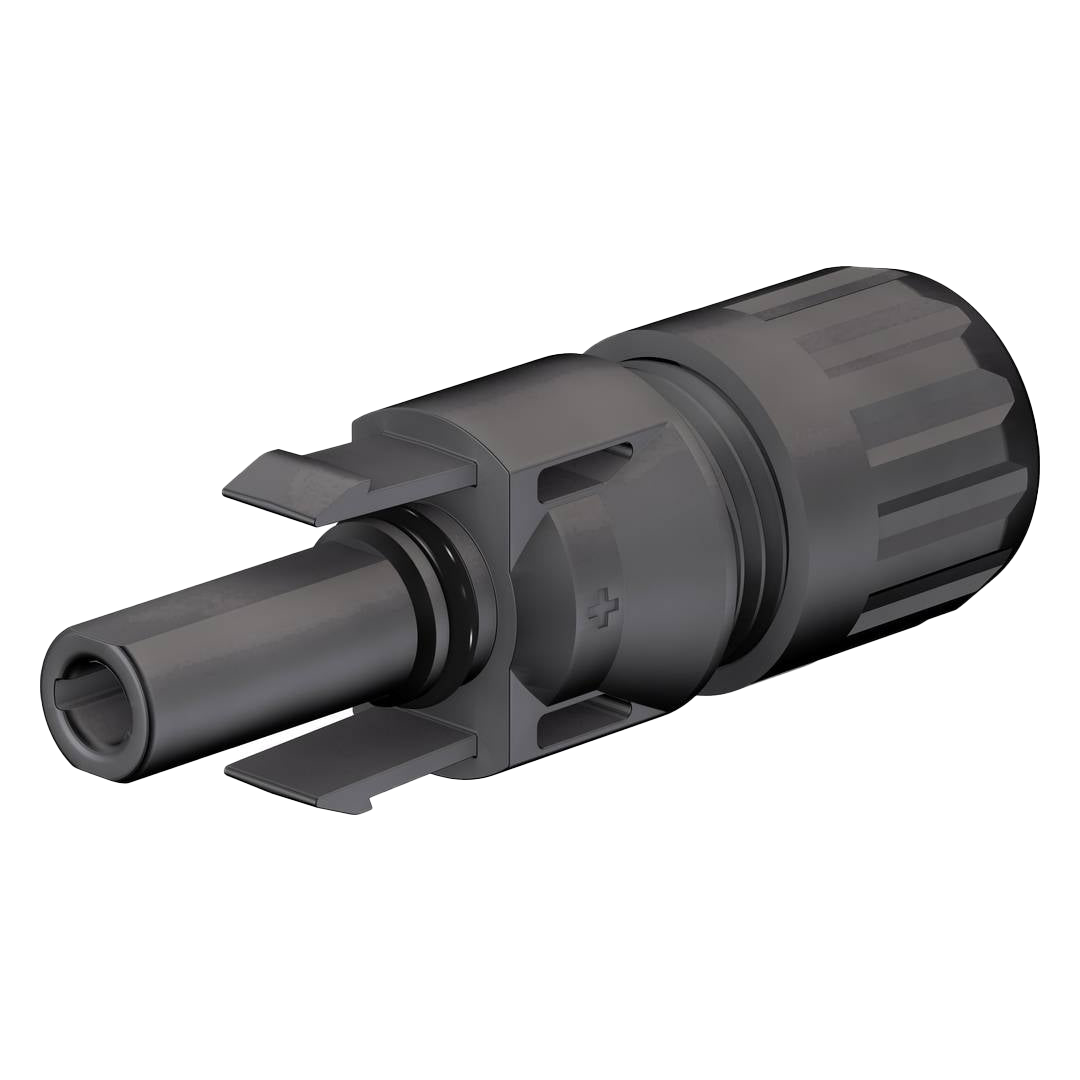

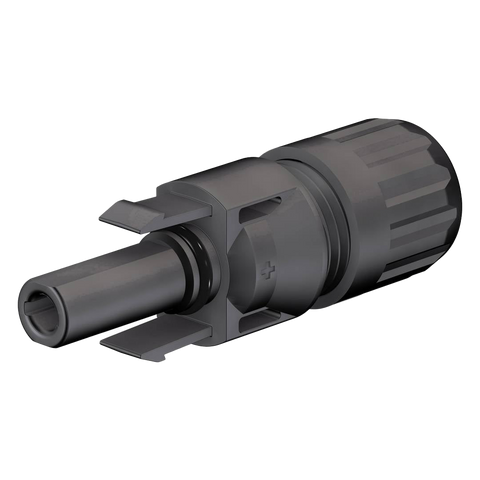

xThe Stäubli PV-KBT4/6II-UR Cable Coupler (Female, MC4, 4–6 mm², 10 Pack) is a premium-quality photovoltaic connector engineered for dependable DC connections in solar power systems. Designed to interface seamlessly with male MC4 connectors, this female coupler offers robust mechanical and electrical performance with field-proven MULTILAM contact technology, ensuring long-term reliability in harsh outdoor environments.
Key Features
- MC4-compatible female cable coupler
- Designed for 4 mm² to 6 mm² solar cables
- Snap-in locking for secure, tool-free installation
- Low contact resistance via MULTILAM contact system
- Weatherproof and UV-resistant housing
- Suitable for high-voltage applications
- Touch-proof design ensures user safety
- Long operational life in outdoor conditions
- Easy handling during field installation
- Certified to international PV standards
Specifications
xComes in packs of 10
Connector Type
Female cable coupler (MC4-compatible)
Cable Cross-Section
4 – 6 mm²
Rated Voltage
1,500 V DC (IEC) / 1,000 V DC (UL)
Rated Current
Up to 45 A (depending on cable size)
Contact Resistance
≤ 0.5 mΩ
Operating Temperature Range
−40°C to +85°C (IEC) / up to +115°C (UL)
Ingress Protection Rating
IP68 (when mated)
Insulation Material
PPO (Polyphenylene oxide)
Contact Material
Tinned copper with MULTILAM technology
Standards Compliance
IEC 62852 / UL 6703
