Description

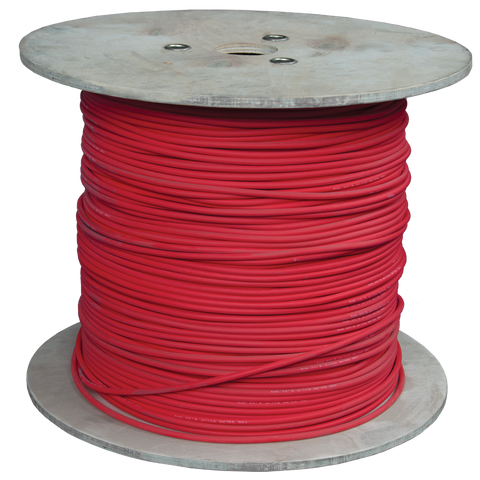

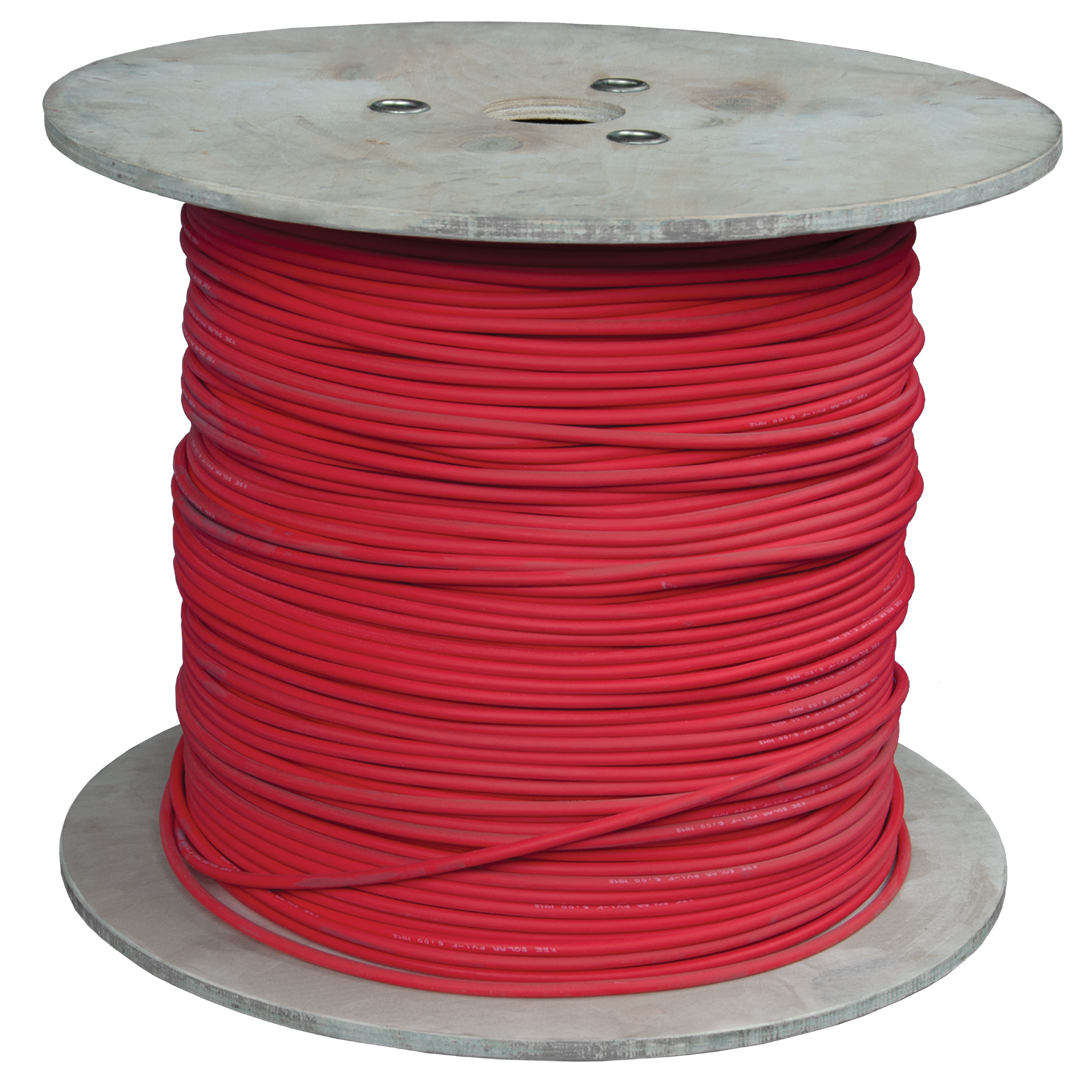

xThe KBE Solar Cable DB+ in 4mm² is a high-quality, triple-certified photovoltaic (PV) cable engineered for safe and efficient solar power installations. Featuring a durable red sheath, this cable complies with EN50618 and other industry standards, ensuring reliable performance in demanding outdoor environments.
Key Features
- Voltage Rating: 1.5 kV DC for high-voltage solar applications
- Temperature Range: –40°C to +90°C operating, up to +120°C max conductor temperature
- UV and Weather Resistant: Suitable for prolonged outdoor use
- Certification: Triple certified with EN50618, TÜV, and CPR Eca
Specifications
xConductor Size
4mm²
Conductor Material
Tinned copper
Insulation Material
Cross-linked polyethylene (XLPE)
Sheath Material
Cross-linked polyethylene (XLPE)
Rated Voltage
AC 600/1000V; DC 900/1500V
Temperature Range
-40°C to +90°C (operating temperature); up to +120°C (short-circuit temperature)
Certification Standards
EN50618, TÜV 2 PfG 1169/08.07, and IEC 62930
UV Resistance
High resistance to UV radiation
Flame Retardant
Yes, meets EN 60332-1-2 standard
Color
Red
