Description

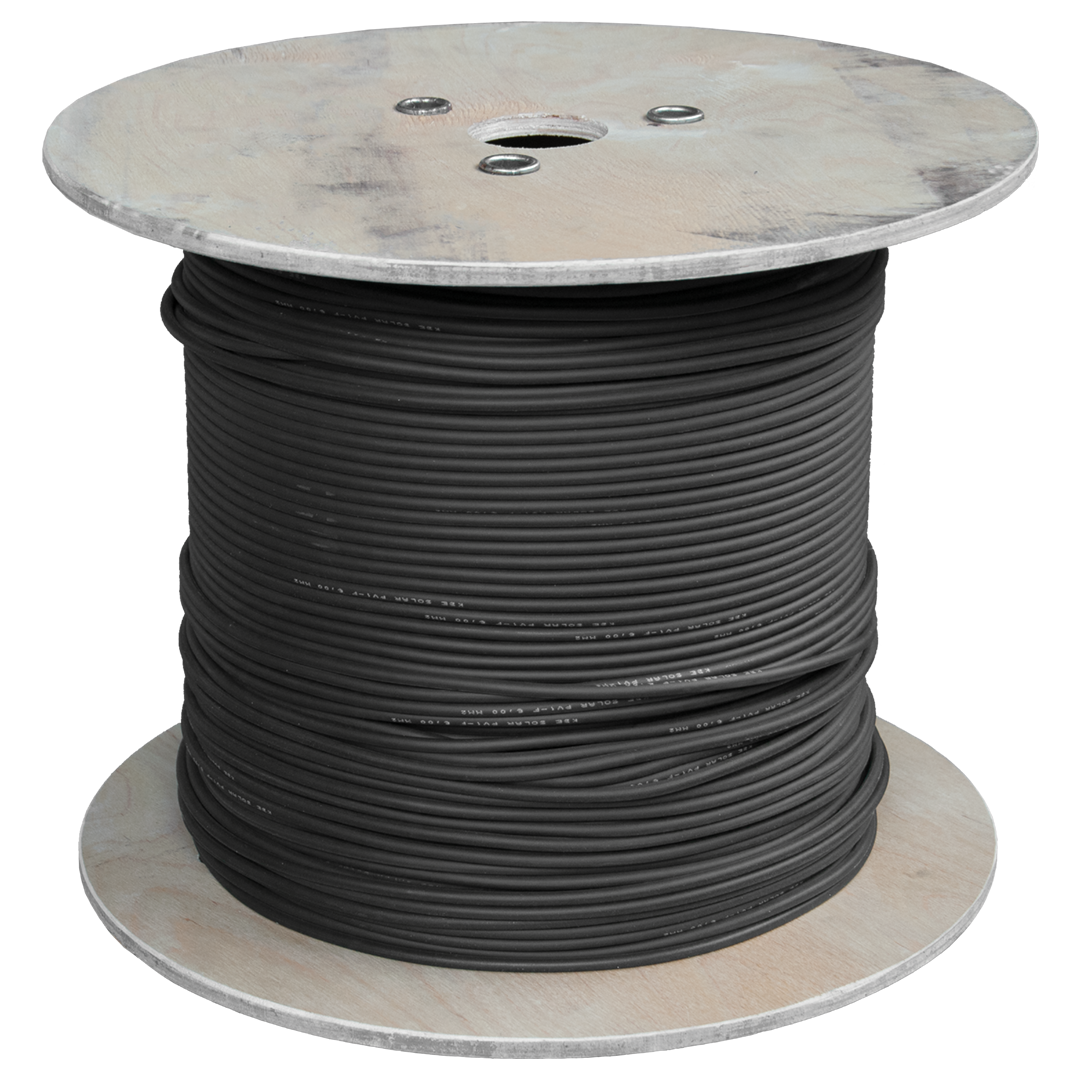

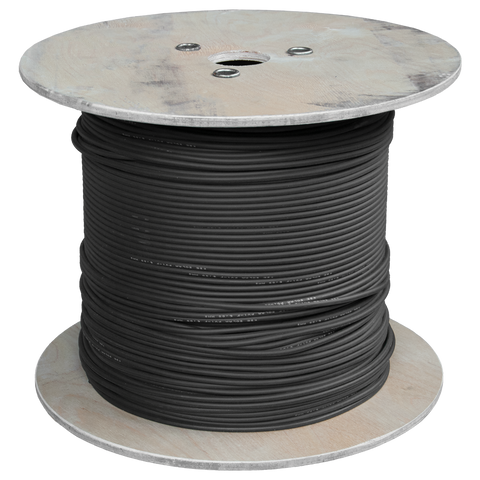

xThe KBE Solar Cable DB+ is a premium, triple-certified photovoltaic (PV) cable designed for reliable and safe solar power installations. With a 6mm² conductor and robust black sheath, this cable comes in convenient 1000-metre lengths, meeting the highest industry standards including EN50618 for optimal performance in demanding environments.
Key Features
- Voltage Rating: 1.5 kV DC for reliable high-voltage performance
- Temperature Range: –40°C to +90°C operating, up to +120°C max conductor temperature
- UV and Weather Resistant: Designed for harsh outdoor environments
- Certifications: Triple certified with EN50618, TÜV, and CPR Eca rating
Specifications
xConductor Size
6 mm²
Cable Length
1000 metres per reel
Voltage Rating
1.5 kV DC (U₀/U = 1.5/1.5 kV)
Certification
Triple certified – EN50618, TÜV, CPR Eca
Operating Temperature Range
–40°C to +90°C
Maximum Conductor Temperature
+120°C
Insulation & Sheath Material
Cross-linked polyethylene (XLPE), halogen-free, flame-retardant
UV and Weather Resistance
Suitable for prolonged outdoor exposure and harsh climates
Fire Performance
Flame retardant, low smoke halogen-free (LSHF) compliant
Mechanical Properties
High tensile strength and abrasion resistance for durable installation
