Description

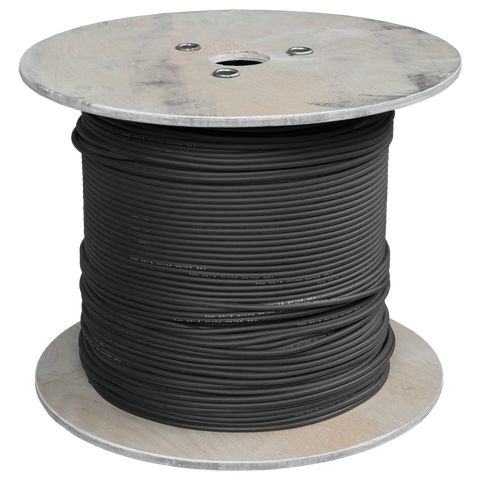

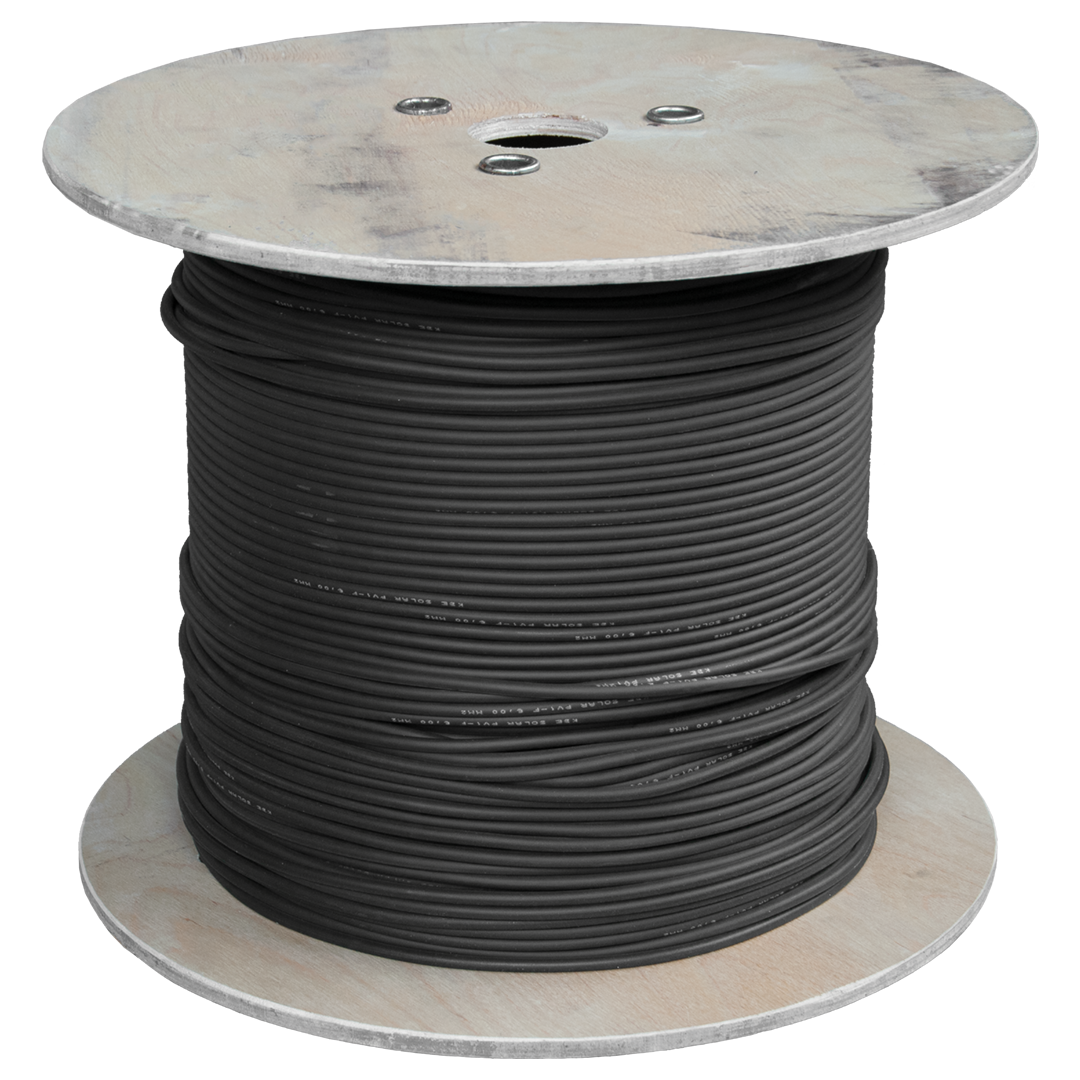

xKBE Solar DB+ 4mm² is a premium, single-core photovoltaic cable designed for long-term outdoor use in solar installations. Engineered in Germany and triple certified (EN50618, TÜV, CPR Eca), it provides high reliability, superior durability, and excellent electrical performance in both residential and commercial solar PV systems.
Key Features
- Triple certified for safety, performance, and fire resistance
- UV and ozone resistant for outdoor use
- Halogen-free, low smoke for enhanced fire safety
- Suitable for DC voltage up to 1.5 kV
Specifications
xConductor Size
4 mm²
Colour
Black
Voltage Rating
1.5 kV DC
Certifications
EN50618, TÜV, CPR Eca
Operating Temperature
–40°C to +90°C
Maximum Conductor Temperature
+120°C
Insulation & Sheath
XLPE, halogen-free, flame retardant
UV Resistance
Excellent, suitable for outdoor applications
Fire Performance
Low smoke, halogen-free (LSHF)
Mechanical Strength
High abrasion and tensile strength
