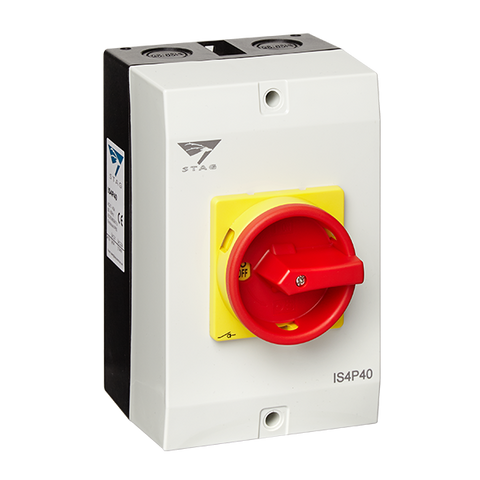

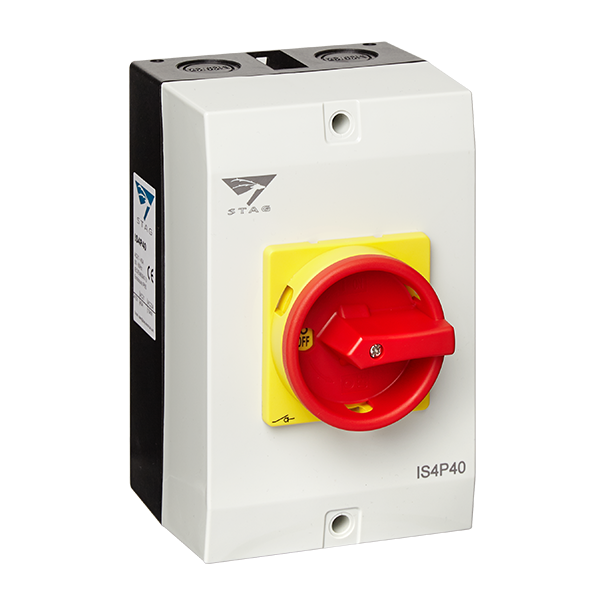

xThe IMO Stag AC Isolator is a robust 4-pole, 40A switch disconnector designed for industrial and commercial applications requiring secure isolation of AC power. Engineered for reliability and long-term performance, this isolator ensures safe maintenance and emergency disconnection of electrical systems. Its compact, DIN-rail mountable design supports quick installation in control panels and distribution boards.
Key Features
- 4-pole configuration for full 3-phase + neutral isolation
- Rated operational current: 40A
- IP66/IP67-rated enclosure options available
- Positive break mechanism ensuring clear contact separation
- Padlockable handle for enhanced safety
- Flame-retardant and UV-resistant housing
- Quick-make/slow-break operation
- Conforms to IEC and EN standards
- Maintenance-free design
- Suitable for indoor and outdoor use
Specifications
xPoles
4 (Three-phase + Neutral)
Rated Operational Current (AC-21A)
40 A
Rated Insulation Voltage (Ui)
690 V AC
Rated Impulse Withstand Voltage (Uimp)
6 kV
Utilisation Category
AC-21A / AC-22A
Ingress Protection Rating
IP66/IP67 (with enclosure)
Operating Temperature Range
–25°C to +55°C
Terminal Capacity
Up to 16 mm²
Mounting
DIN rail or panel mount
Standards Compliance
IEC 60947-3, EN 60947-3
