Description

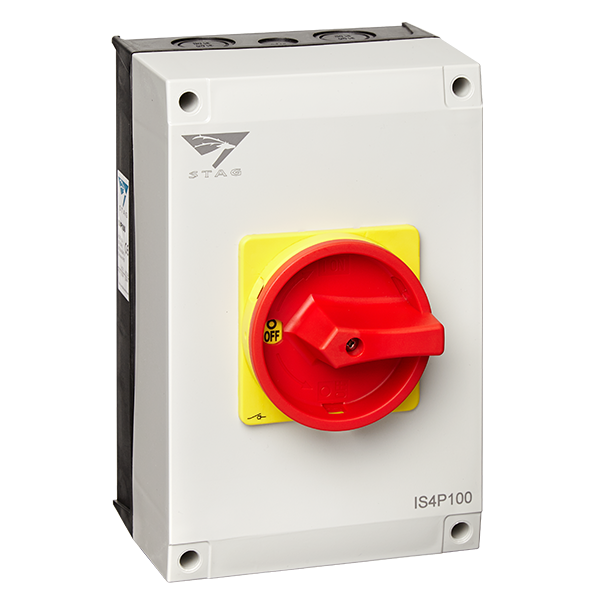

xThe IMO Stag AC Isolator (4-pole, 100A) is a robust switch disconnector designed for reliable AC power isolation in industrial and commercial electrical systems. Built to handle demanding environments, it ensures safe manual disconnection of power for maintenance or emergency operations. Its compact form factor and durable construction make it ideal for solar installations, motor control centres, and general AC isolation applications.
Key Features
- 4-pole configuration for complete isolation of three-phase and neutral conductors
- Rated for continuous operation at 100A
- Fully enclosed, finger-safe design for enhanced safety
- Suitable for indoor and outdoor use (IP65-rated enclosures available)
Specifications
xNumber of Poles
4
Rated Current
100 A
Rated Operational Voltage
690 V AC
Rated Insulation Voltage (Ui)
800 V
Rated Impulse Withstand Voltage
8 kV
Utilisation Category
AC-22A / AC-23A
Mechanical Endurance
>10,000 operations
Electrical Endurance
>1,500 operations at full load
Mounting Type
DIN rail / Panel
Ingress Protection Rating
IP20 (body), IP65 (with enclosure)
