Description

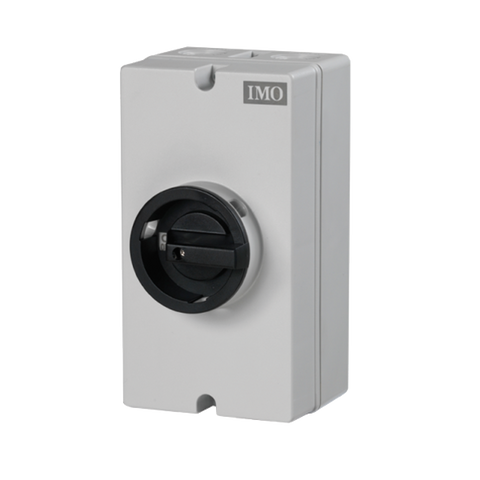

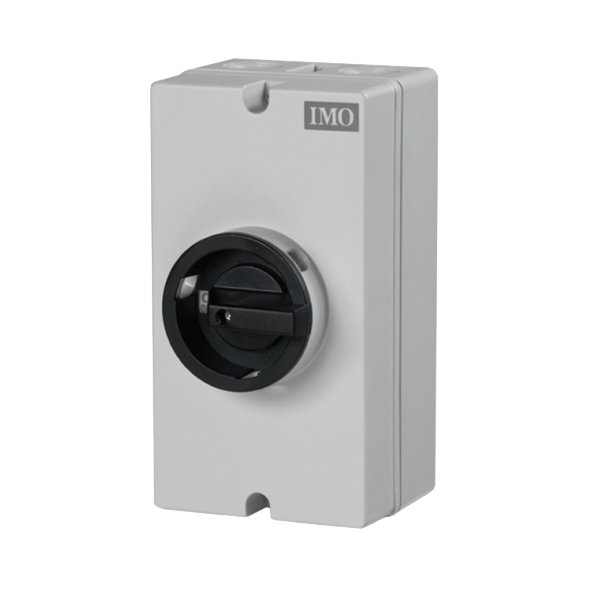

xThe IMO Enclosed DC Isolator is designed for safe and reliable isolation of DC circuits in photovoltaic and other renewable energy applications. Featuring a robust 4-pole configuration, it ensures comprehensive disconnection for system maintenance and emergency shutdowns. Rated for 1000VDC and 25A, this isolator provides high performance and protection under demanding conditions, complying with international safety standards.
Key Features
- Four-pole switching for full circuit isolation
- Rated for up to 1000 volts DC, suitable for high-voltage PV arrays
- Compact and rugged enclosed design for enhanced safety and durability
- Easy installation with clear ON/OFF visual indication
Specifications
xNumber of Poles
4
Rated Operational Voltage (DC)
1000 V
Rated Current
25 A
Rated Insulation Voltage
1000 V DC
Rated Impulse Withstand Voltage
8 kV
Degree of Protection
IP65
Operating Temperature Range
-25°C to +60°C
Mechanical Life
10,000 cycles
Electrical Life
4,000 cycles at rated load
Standards Compliance
IEC 60947-3, UL 508
