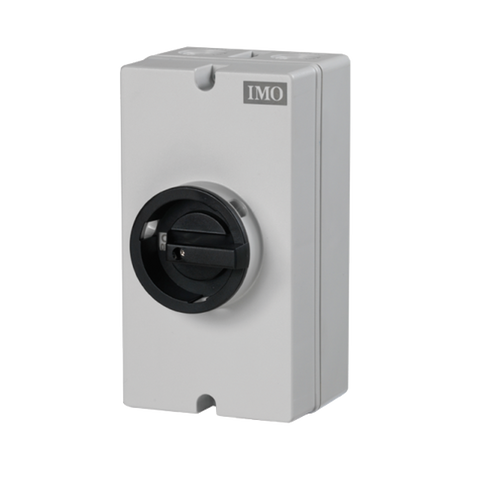

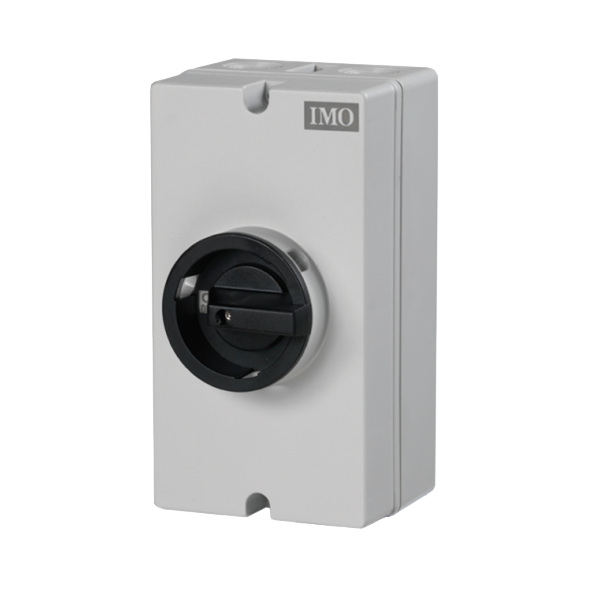

IMO Enclosed DC Isolator, 2 Pole, 800VDC, 16A

The IMO Enclosed DC Isolator (2-pole, 800VDC, 16A) is a purpose-built disconnect switch engineered for direct current applications, especially in photovoltaic (PV) installations. Housed in a durable, weather-resistant enclosure, it ensures safe and reliable isolation of DC circuits, particularly between solar panels and inverters. Its compact footprint and operator-independent switching...
Vendor: IMO South Africa
SKU: SI16-PEL64R-2
Availability: In stock
Product type: Solar PV Balance Of System
Please hurry! Only 5 left in stock
Description
Description
x

The IMO Enclosed DC Isolator (2-pole, 800VDC, 16A) is a purpose-built disconnect switch engineered for direct current applications, especially in photovoltaic (PV) installations. Housed in a durable, weather-resistant enclosure, it ensures safe and reliable isolation of DC circuits, particularly between solar panels and inverters. Its compact footprint and operator-independent switching make it ideal for residential and light commercial solar energy systems.

Key Features

  • True DC switching – no need for de-rating
  • Double-break contacts for fast, arc-free operation
  • Enclosed in IP66-rated thermoplastic housing
  • Lockable rotary handle for safety compliance
  • Designed for use up to 800VDC in PV systems
Specifications
Specifications
x
Number of Poles
2
Rated Operational Voltage
800VDC
Rated Current
16A
Rated Insulation Voltage (Ui)
1000V
Impulse Withstand Voltage (Uimp)
8kV
Ingress Protection Rating
IP66
Operating Temperature Range
-40°C to +45°C
Switching Time
<5 milliseconds
Terminal Capacity
Up to 10mm²
Standards Compliance
IEC 60947-3, UL508i, CE
