Description

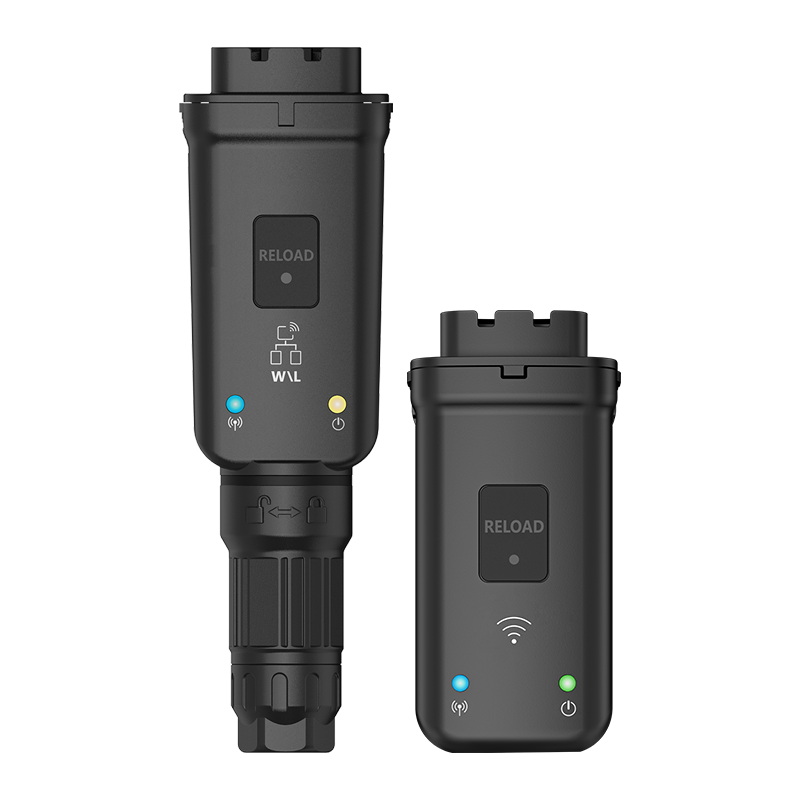

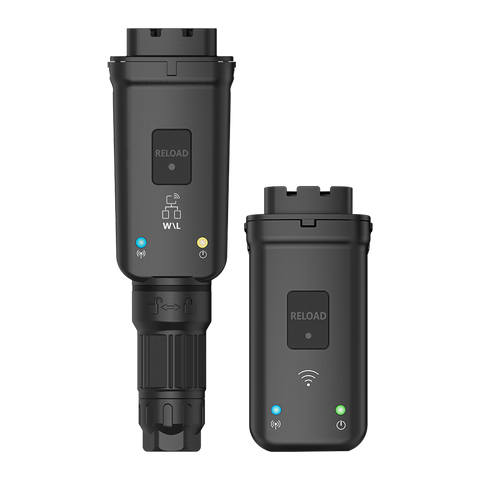

xThe GoodWe WiFi/LAN Kit-20 is a next-generation communication module designed for seamless integration with GoodWe inverters. Supporting both WiFi and LAN connectivity, it ensures flexible, secure, and reliable data transmission. This versatile kit enables remote configuration and monitoring via Bluetooth, offering enhanced user convenience and faster system response. With features such as breakpoint retransmission and plug-and-play installation, it reduces data loss risk and simplifies setup, making it ideal for residential and commercial PV applications.
Key Features
- Dual-mode connectivity (WiFi + LAN)
- Breakpoint retransmission for data integrity
- Bluetooth V4.2 for local configuration
- Remote upgrade capability
Specifications
xModel
WiFi/LAN Kit-20
Input Voltage
5 V DC
Power Consumption
≤ 2 W
Connection Interface
USB
WLAN Standard
IEEE 802.11 b/g/n @ 2.4 GHz
Ethernet Interface
10M / 100Mbps, self-adaptive
Bluetooth Version
V4.2 BR/EDR + LE
Dimensions (W × H × D)
48.3 × 159.5 × 32.1 mm
Ingress Protection
IP65
Operating Temperature Range
−30 °C to +60 °C
