Description

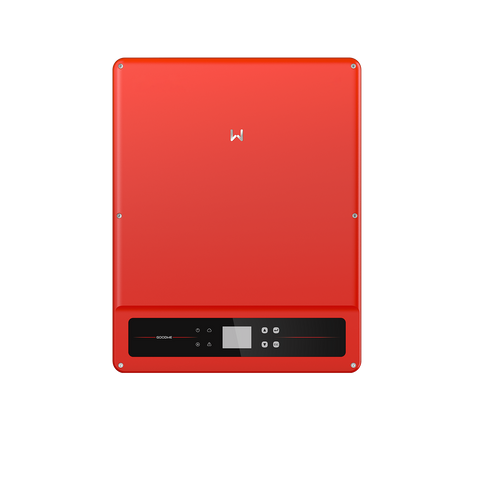

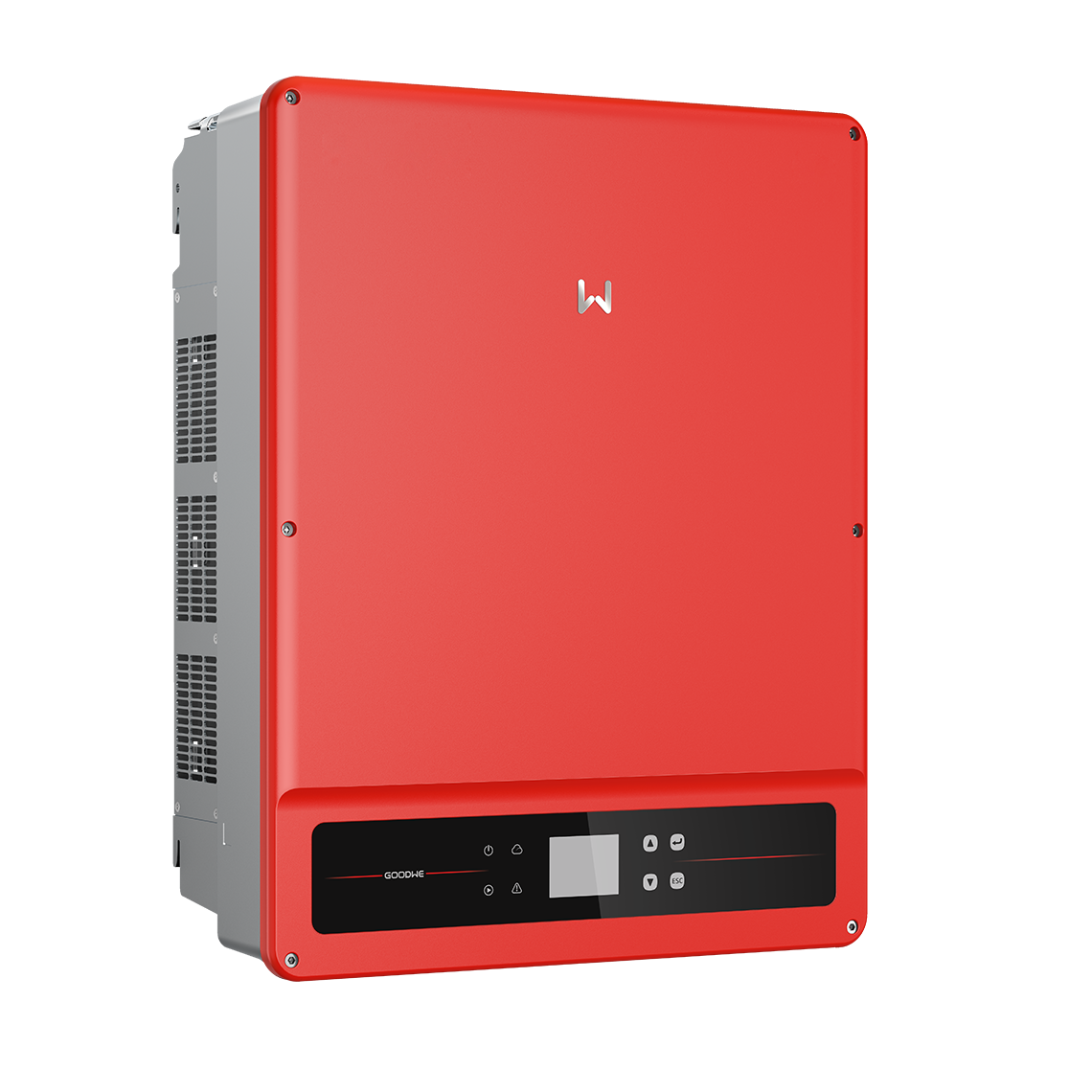

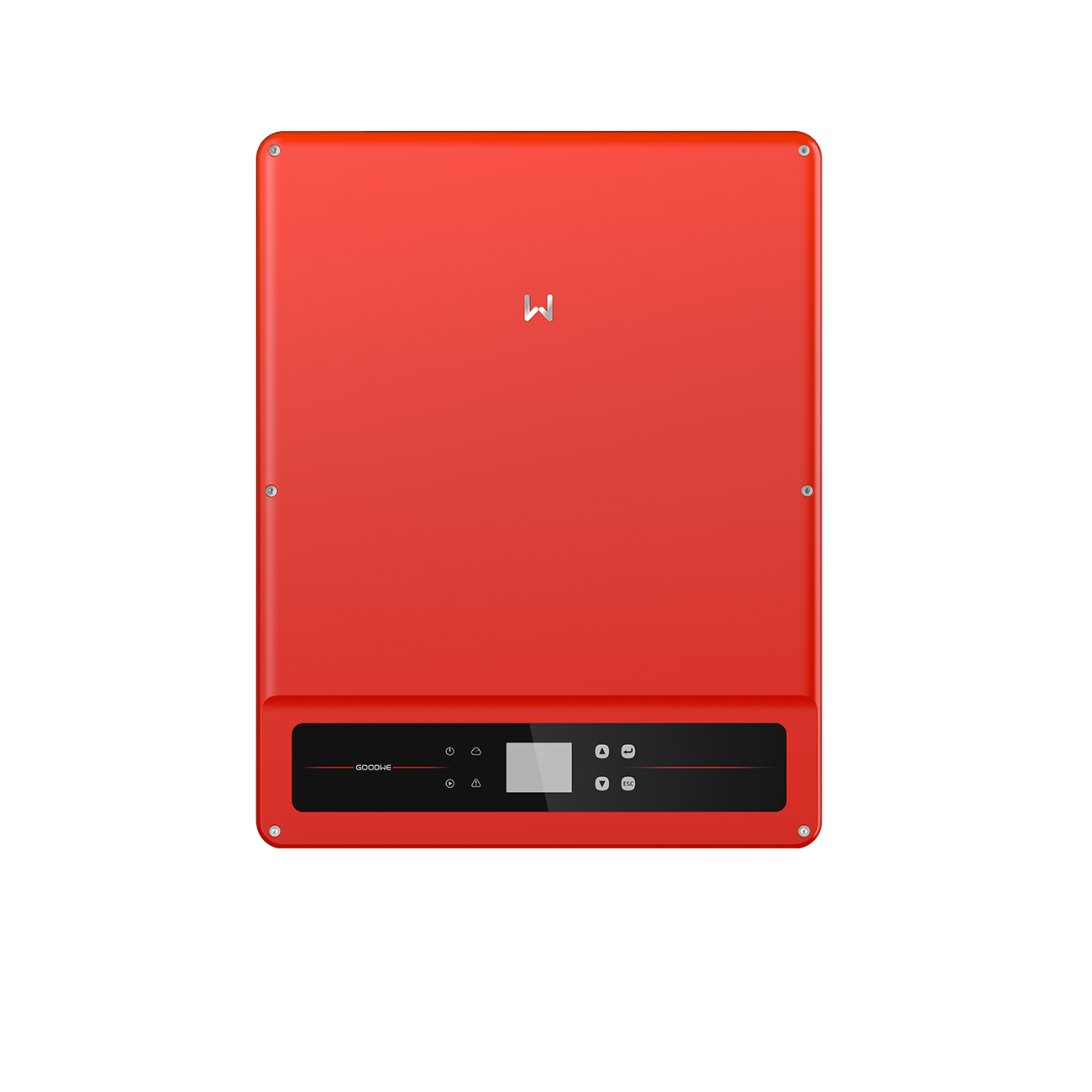

xHigh-efficiency inverter for large commercial PV systems. Features six MPPTs for maximum yield on complex rooftops. Delivers 66 kW AC overload and full output up to 45 °C with 98.6% max efficiency.
Built for reliability with Type II surge protection, smart cooling, remote shutdown, and RCM. IP65-rated for indoor/outdoor use. Compact design for easy installation. SEC1000 compatible for export control and load monitoring.
Key Features
- 6 MPPTs for flexible and efficient multi-array configurations
- 110% AC overload capability, delivering up to 66 kW for increased yield
- 98.6% maximum efficiency, ensuring superior energy conversion
- Type II AC/DC surge protection and IP65 rating for safety and durability
Specifications
xNominal Output Power
60.0 kW
Max. AC Active Power
66.0 kW
Number of MPP Trackers
6
Max. Input Voltage
1100 V
MPPT Operating Voltage Range
200 – 950 V
Max. Efficiency
98.6%
Ingress Protection Rating
IP65
Cooling Method
Smart fan cooling
Communication Interfaces
RS485, WiFi; Modbus-RTU (SunSpec compliant)
Dimensions / Weight
520 × 660 × 220 mm / 56 kg
