Description

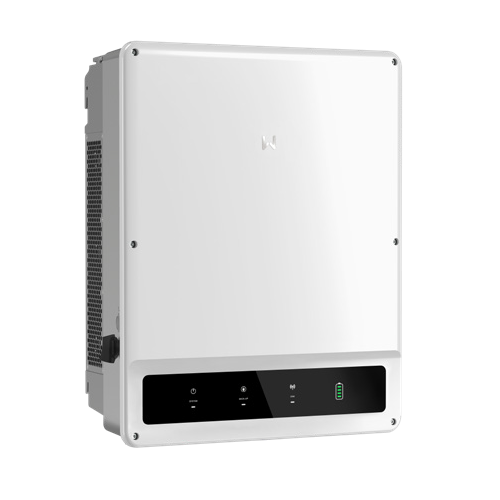

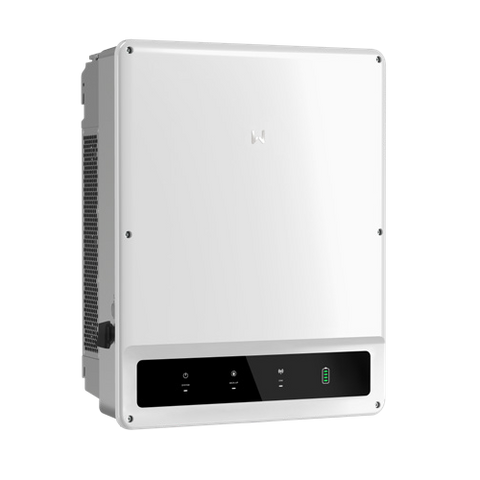

xThe GoodWe GW29.9K-ET is a high-performance, three-phase hybrid inverter designed for large residential and small commercial or industrial energy storage applications. It supports seamless integration with high-voltage lithium batteries and optimises energy usage through smart load management and backup power capabilities.
This hybrid inverter enables peak shaving, load control via dry contact, and export limitation, offering flexible and intelligent energy management. Its robust safety features, compact design, and broad battery compatibility make it ideal for future-ready systems.
Key Features
- Hybrid Inverter (HV) for energy storage and grid support
- Up to 3 MPPTs for optimised PV generation
- Smart Load Control via integrated dry contact
- Peak Shaving and Backup Support
- Type II DC Surge Protection, AFCI optional
- IP66 Enclosure for harsh environments
- Battery compatibility with GoodWe Lynx Home F and other Li-Ion brands
- WiFi / 4G Communication for real-time monitoring
- Flexible installation with wall-mounted, compact design
- High system reliability with integrated protections
Specifications
xNominal AC Power Output
29,900 VA
Max. PV Input Power
45,000 W
Battery Voltage Range
200 – 800 V
Max. Charging / Discharging Current
2 × 50 A
Number of MPPTs / Strings
3 MPPTs / 2 strings per MPPT
Max. Efficiency
98.0%
Max. Backup Output Power
30,000 VA (36,000 VA @ 60s)
Max. Input Voltage
1000 V
Communication Interfaces
RS485 / CAN / WiFi / 4G
Ingress Protection Rating
IP66
