Description

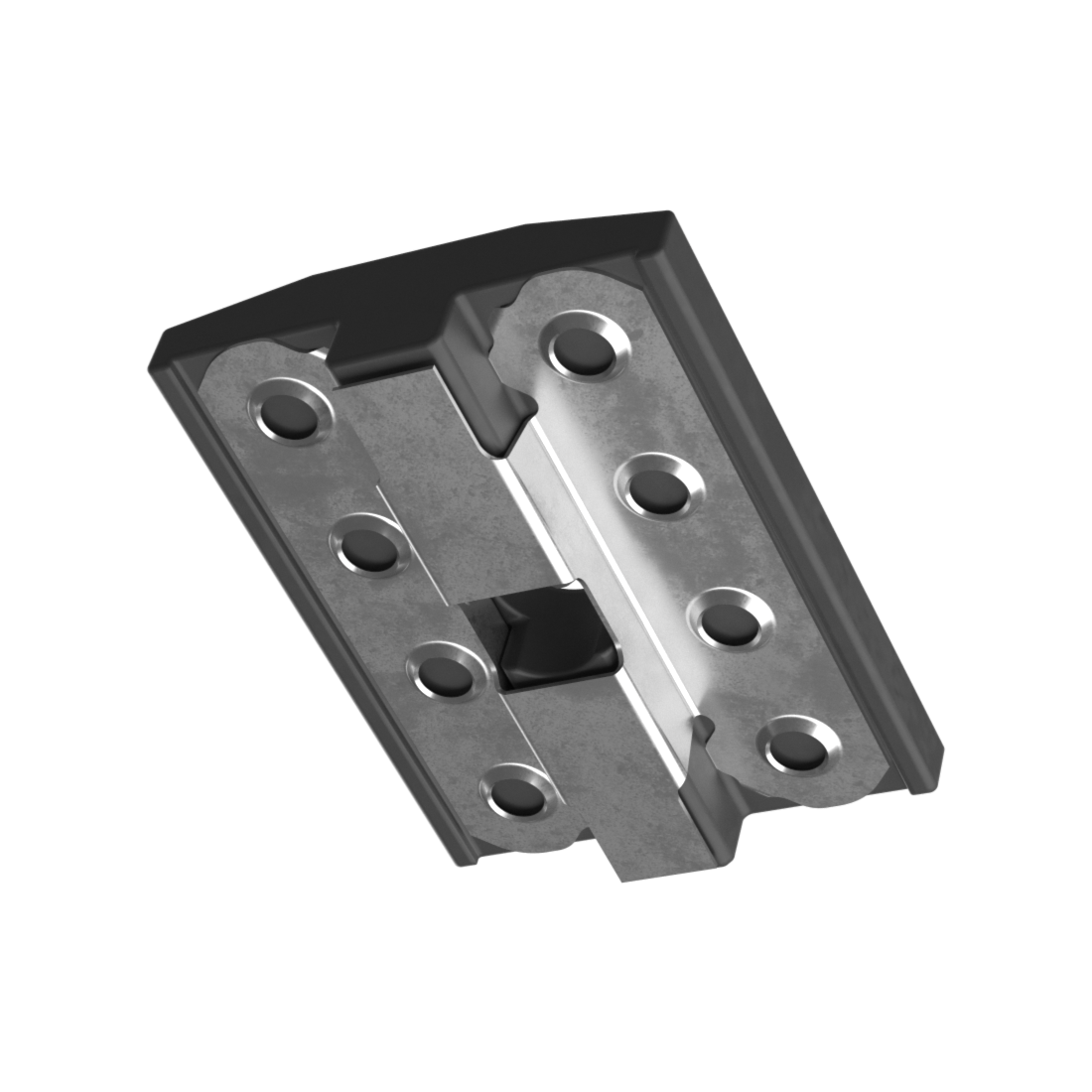

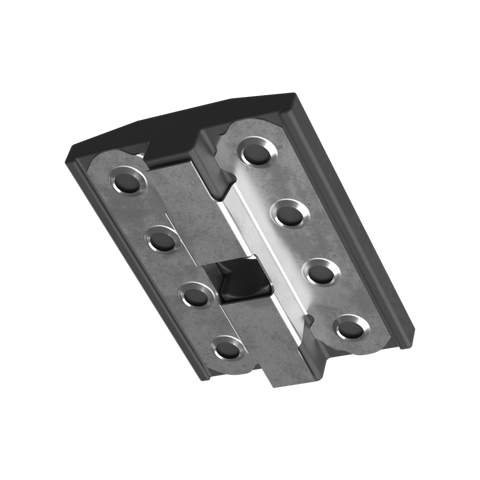

xThe Esdec Universal Mid Clamp with Bonding in black offers secure and conductive mounting for framed PV modules. Designed to simplify installation, it features integrated bonding teeth that ensure reliable grounding without additional components. Compatible with various module frame heights, it guarantees structural integrity and electrical safety across Esdec mounting systems.
Key Features
- Universal compatibility with 30–50 mm frame heights
- Integrated bonding for safe electrical grounding
- Corrosion-resistant black anodised aluminium finish
- Pre-assembled for fast installation
Specifications
xMaterial
Aluminium (EN AW-6063 T66), stainless steel components
Surface Treatment
Black anodised (20 μm layer)
Frame Compatibility
30–50 mm module frame height
Bonding Capability
Integrated teeth for electrical continuity
Clamp Width
~45 mm
Fastener Type
Pre-installed stainless steel bolt
Torque Requirement
12–16 Nm
Pull-Out Strength
> 3,500 N
Temperature Range
-40 °C to +85 °C
Standards Compliance
IEC 62548, UL 2703 (bonding performance)
