Description

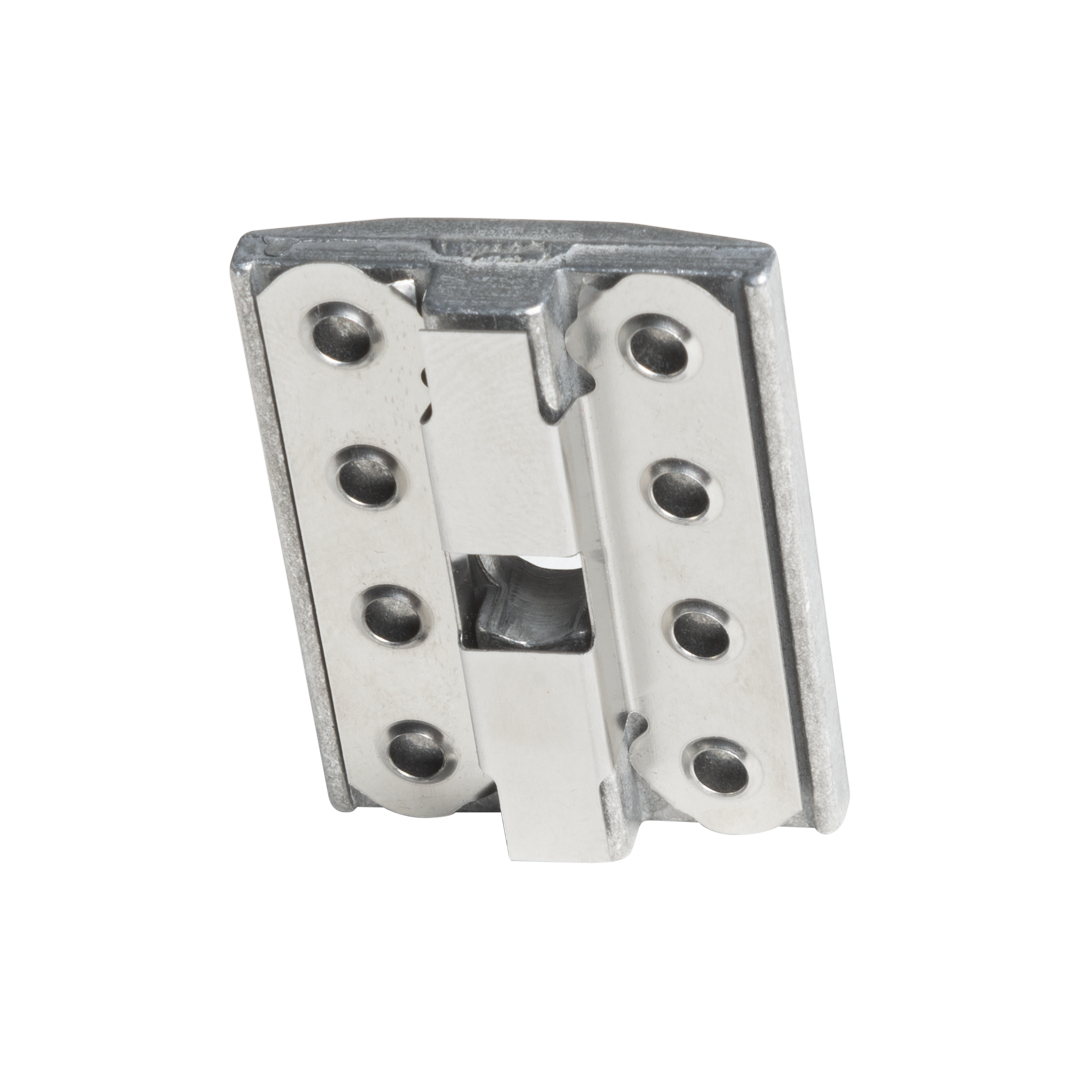

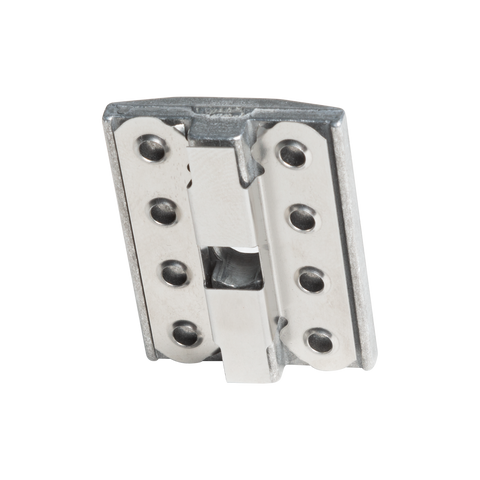

xThe Esdec FlatFix Fusion Universal Mid Clamp with Bonding is engineered for secure mounting of solar panels in flat roof installations. Designed to fit a wide range of module frame thicknesses, it offers enhanced grounding through integrated bonding features, ensuring electrical safety and system reliability. Its robust aluminium construction and corrosion-resistant finish provide durability in harsh environments.
Key Features
- Universal fit for various module frame thicknesses
- Integrated bonding for safe earthing connection
- High corrosion resistance with anodised aluminium
- Compatible with FlatFix Fusion mounting system
Specifications
xMaterial
Anodised Aluminium
Module Frame Thickness Range
30 – 50 mm
Bonding
Integrated, compliant with grounding standards
Finish
Anodised, UV resistant
Compatible System
FlatFix Fusion
Weight
Approx. 0.15 kg
Corrosion Resistance
High (suitable for outdoor use)
Installation Type
Tool-assisted clamp tightening
Temperature Range
-40°C to +85°C
Standards Compliance
IEC 62548, UL 2703
