Description

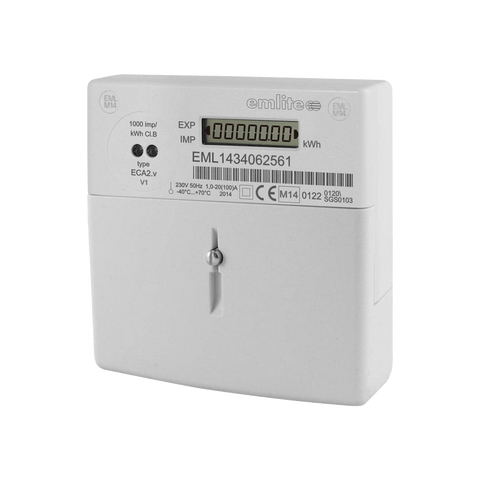

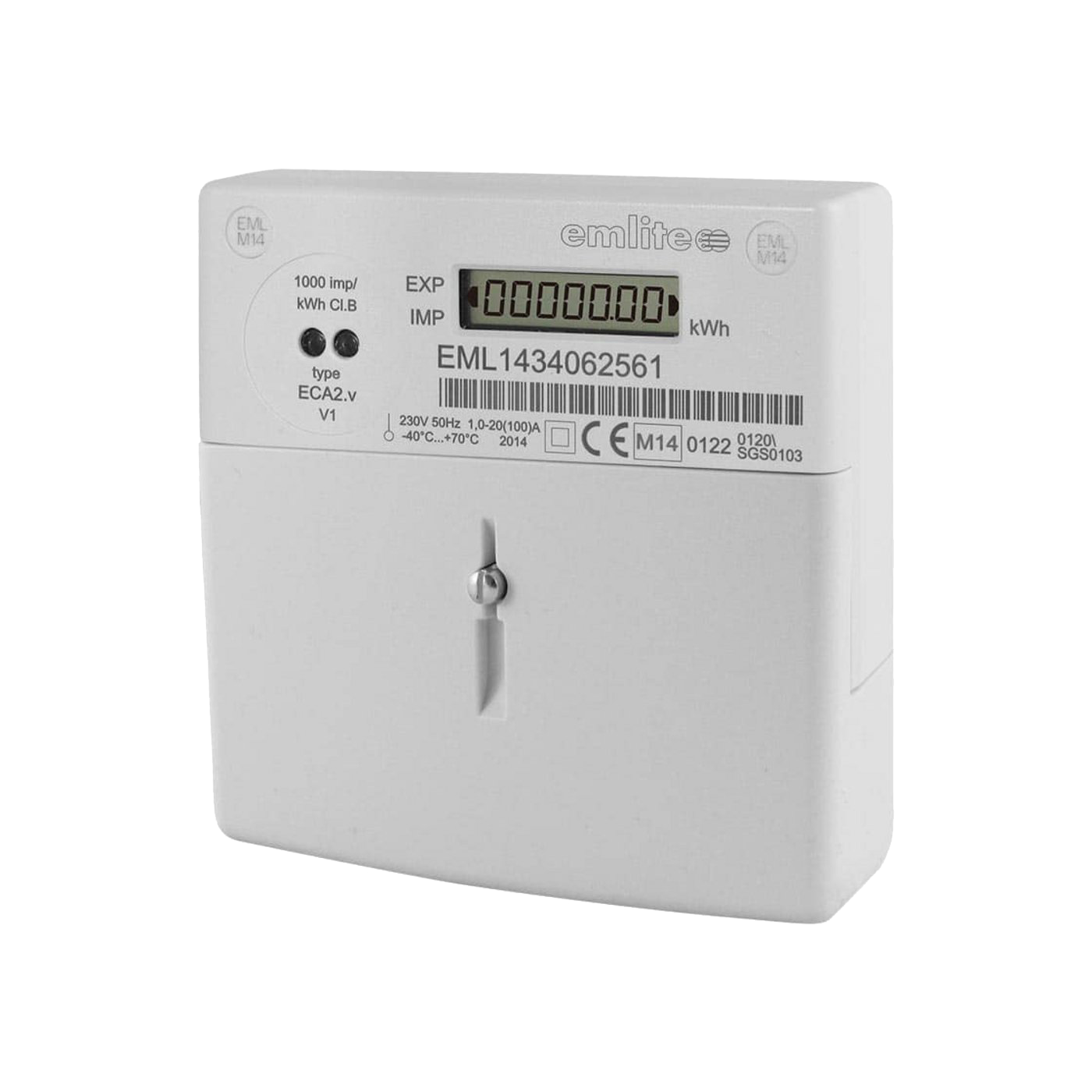

xThe Emlite single-phase bi-directional meter is a compact, highly reliable energy metering solution designed for residential and small commercial renewable energy systems. It accurately measures both imported and exported energy, making it ideal for solar PV and other grid-tied applications. The extended terminal cover provides added safety and easy installation compliance with distribution board requirements.
Key Features
- Bi-directional energy metering (import/export)
- Suitable for solar and battery systems
- Extended terminal cover for enhanced protection
- MID approved for billing accuracy
- LED indicators for energy flow and status
- Compact DIN-rail mountable design
- Optical and RS485 communication options
Specifications
xRated Current
100 A
Voltage Range
230 V AC (±20%)
Frequency
50 Hz
Accuracy Class
Class 1 (Active Energy)
Measurement
Import and export (bi-directional)
Display
LCD with 7-digit register and OBIS codes
Pulse Output
1000 pulses/kWh
Communication
Optical port / RS485 (Modbus)
Mounting
DIN-rail, 1 module
Ingress Protection
IP52 (front panel), IP20 (overall)
