Description

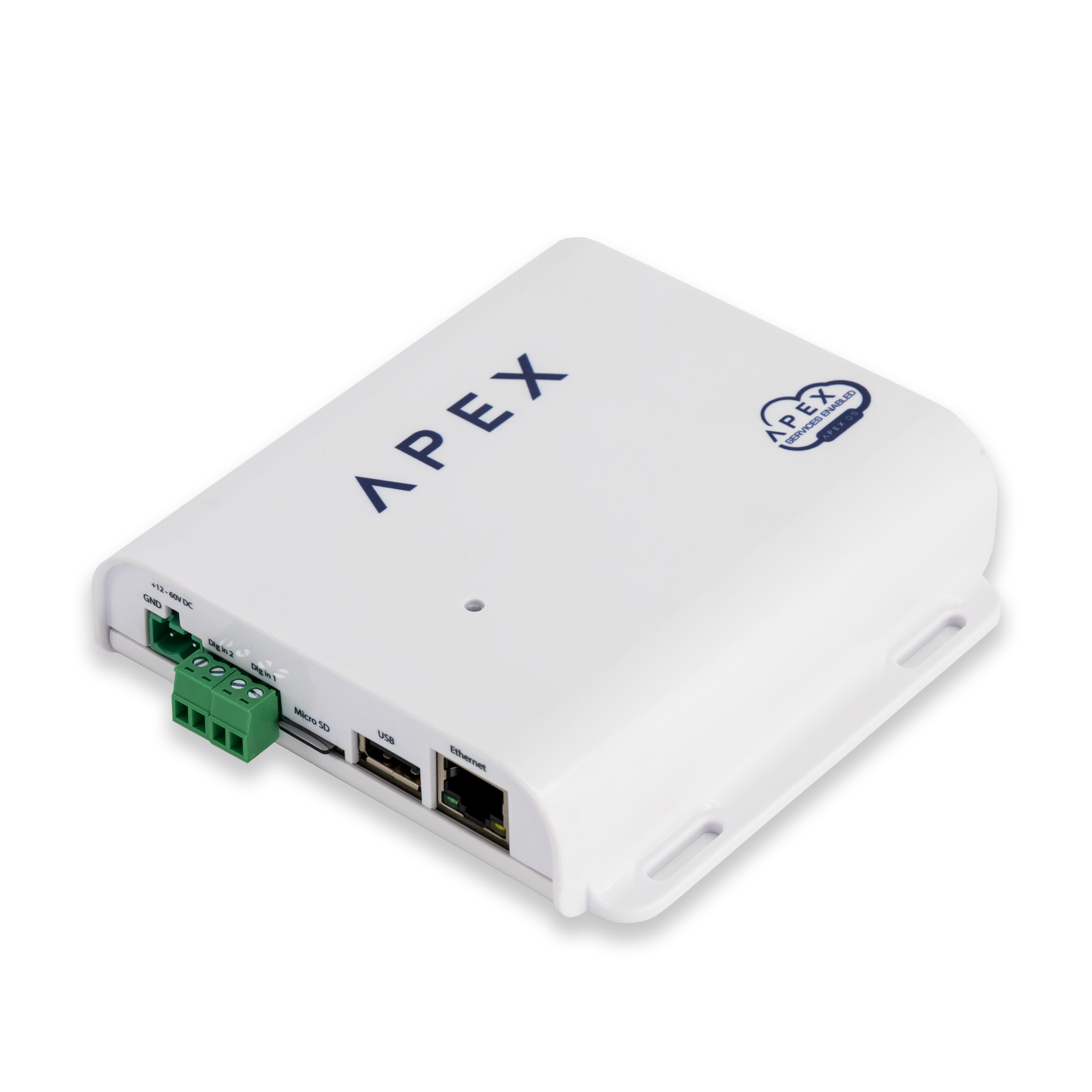

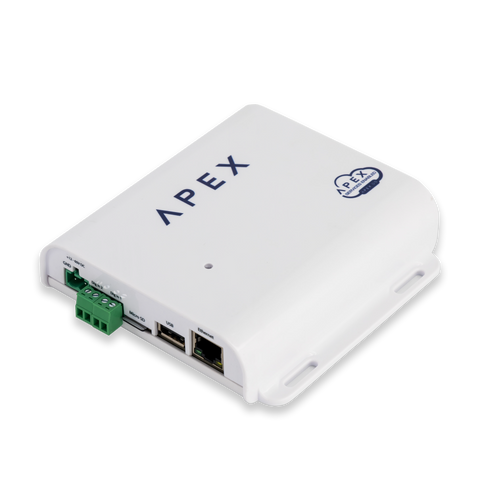

xThe APEX Edge Device is an intelligent, multi-protocol field interface designed for the remote monitoring and control of inverters, energy meters, and battery systems. It supports seamless integration with a variety of devices via RS-232, RS-485, CAN bus, and USB interfaces. The device offers both cloud-based data storage via the APEX Cloud platform and optional local logging through an onboard SD card. Configuration is managed via a local web interface accessible from any mobile device. The unit also serves as a field extension module for MCS microgrid controllers, enabling I/O expansion and intelligent remote control for distributed energy systems.
Key Features
- Multi-interface support (RS-232, RS-485, CAN, USB)
- Compatible with inverters, meters, and battery systems
- Data logging to APEX Cloud and optional SD card
- Wi-Fi, Ethernet, and optional LTE connectivity
- Mobile-accessible local web configuration
- Expandable I/O for field-level control
- Remote firmware updates
- Bluetooth-enabled for device discovery
- 12–60V DC wide-range power input
- Designed for smart microgrid applications
Specifications
xField Serial Interfaces
1 × RS-232, 1 × RS-485, 1 × CAN bus
Digital I/O
2 × dry contact outputs, 2 × digital inputs
Cloud Interfaces
Wi-Fi, Ethernet, LTE (optional)
Local Interfaces
USB Type A, Bluetooth
Storage
SD Card support up to 64GB
Power Supply
12 – 60V DC input
Max Input Current
1.25 A
Firmware Updates
Over-the-air (OTA) via cloud
Configuration
Local web interface accessible via mobile
Supported Devices
Inverters, meters, batteries (driver list on request)
